Climate Control Housing - 5.0L 32V Ti-VCT

Base Part Number: 19B555

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).

2. Remove the instrument panel. Refer to: Instrument Panel (501-12 Instrument Panel and Console, Removal and Installation).

3. NOTICE: Make sure that all openings are sealed.

Remove the nut and the Thermostatic Expansion Valve (TXV) bracket, and disconnect the A/C condenser outlet line and the evaporator outlet line. Torque : 133 lb.in (15 Nm)

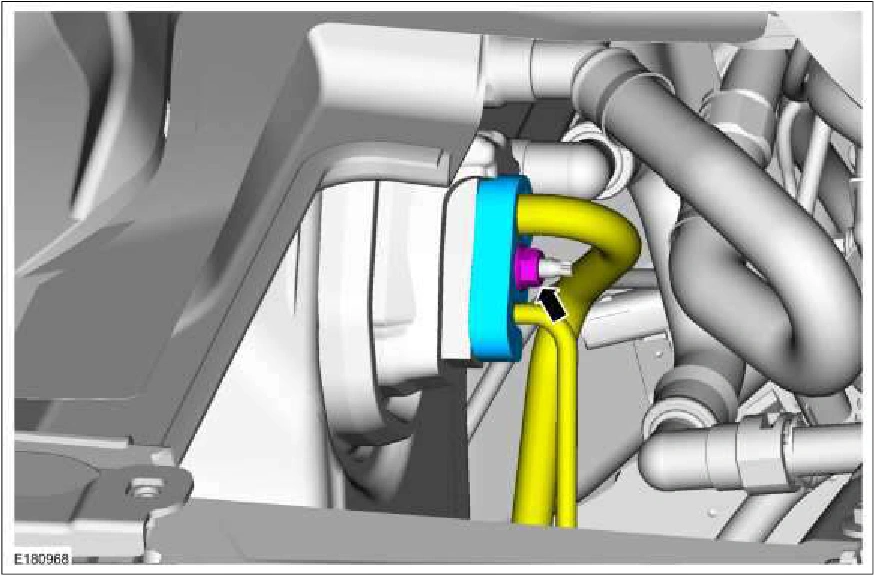

Climate Control Housing - 5.0L 32V Ti-VCT — original illustration 1, reference 3718Original colors & callouts · Select to enlarge

4. NOTE: The engine appearance cover rubber grommets may remain on the cover. If so, remove the grommets from the cover and install them on the intake manifold before installing the cover.

Remove the engine appearance cover.
