Climate Control Housing - 5.0L 32V Ti-VCT

412-00 Climate Control System - General Information

2016 MustangReference 3,720 / 6,619HTML edition

← Chapter contents Procedure contents

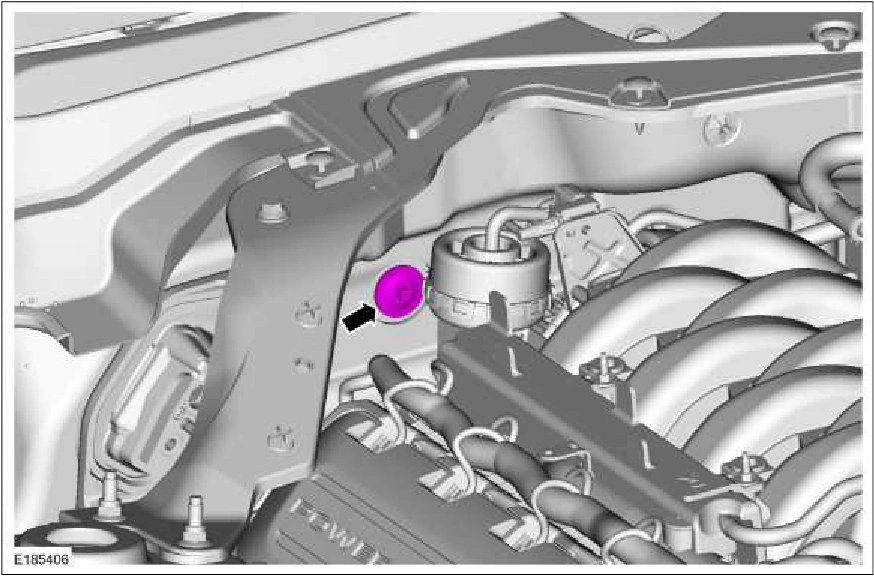

Climate Control Housing - 5.0L 32V Ti-VCT — original illustration 1, reference 3720Original colors & callouts · Select to enlarge

7. Remove the bolt and washer. Torque : 62 lb.in (7 Nm)

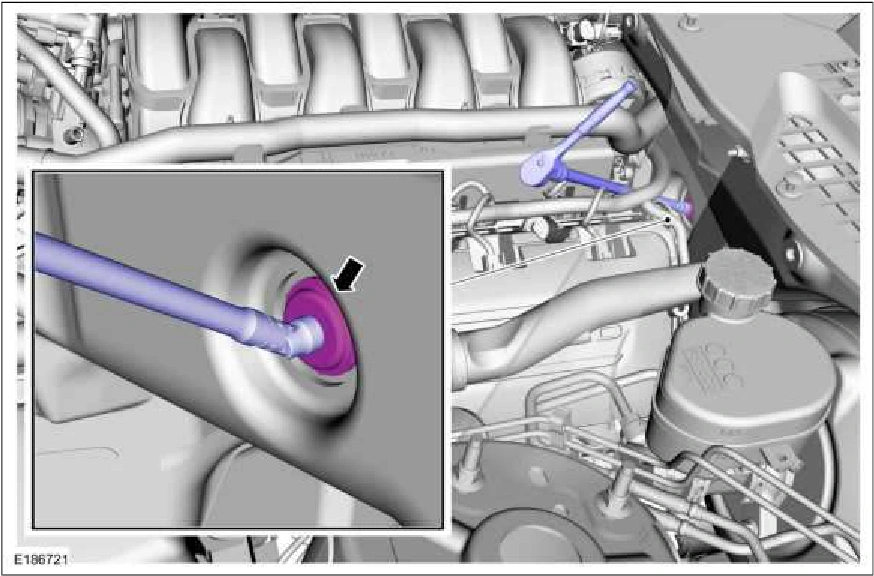

Climate Control Housing - 5.0L 32V Ti-VCT — original illustration 2, reference 3720Original colors & callouts · Select to enlarge

8. Remove the bolt. Torque : 62 lb.in (7 Nm)

Source reference 3720
