Condenser - 3.7L Duratec (227kW/301PS) — 2016 workshop reference 3737

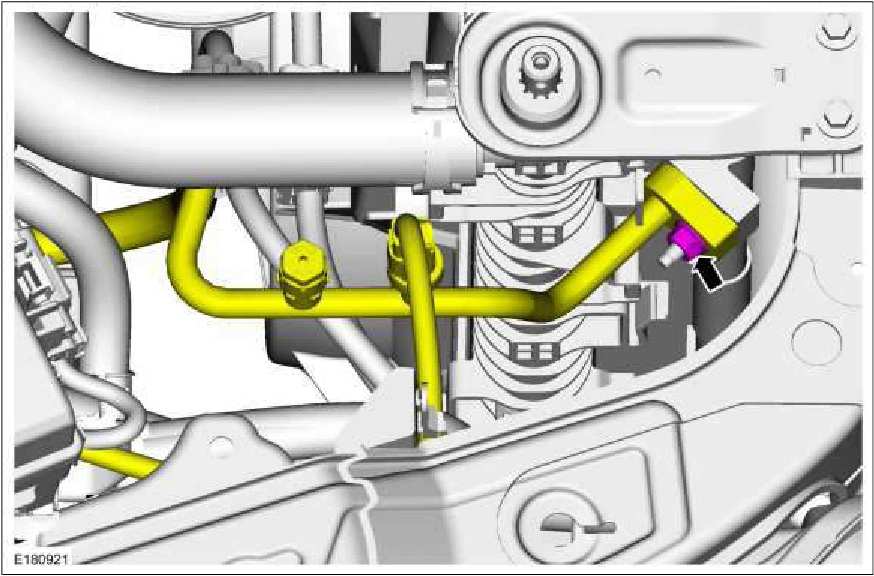

Condenser - 3.7L Duratec (227kW/301PS) — original illustration 1, reference 3737Original colors & callouts · Select to enlarge

7. Remove the air cleaner. Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - 3.7L Duratec (227kW/301PS), Removal and Installation).

8. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe (303-12B Intake Air Distribution and Filtering - 3.7L Duratec (227kW/301PS), Removal and Installation).

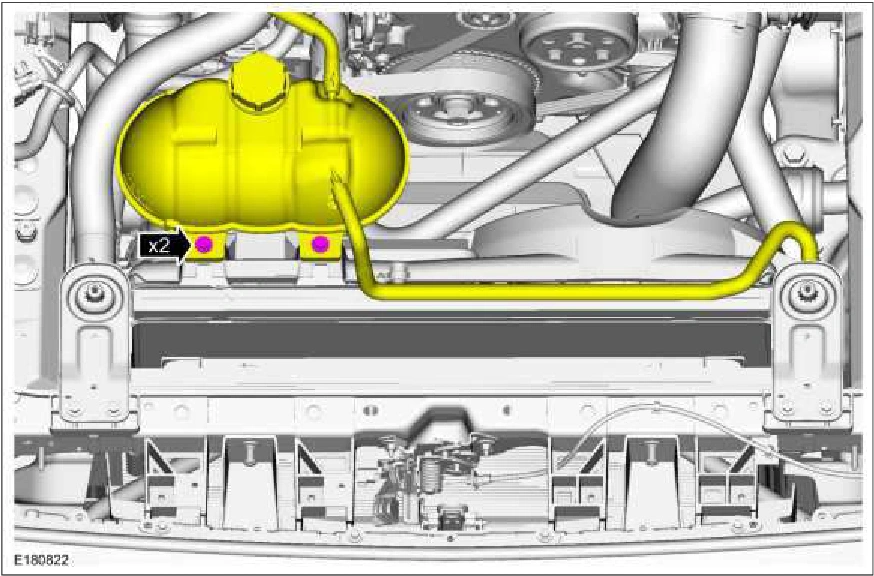

9. Remove the bolts and position the degas bottle aside. Torque : 80 lb.in (9 Nm)

Condenser - 3.7L Duratec (227kW/301PS) — original illustration 2, reference 3737Original colors & callouts · Select to enlarge

10. Remove the bolts and the upper radiator brackets. Torque : 97 lb.in (11 Nm)

Source reference 3737

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
