Condenser - 3.7L Duratec (227kW/301PS) — 2016 workshop reference 3735

412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 01/14/2015

Condenser - 3.7L Duratec (227kW/301PS)

Base Part Number: 19E908

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).

2. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

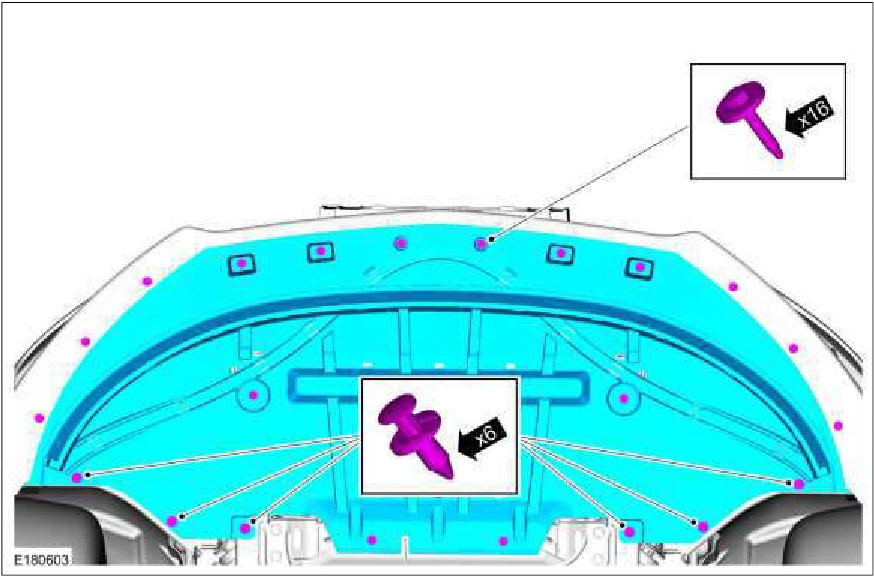

3. Remove the bolts, the retainers and the underbody shield. Torque : 18 lb.in (2 Nm)

Condenser - 3.7L Duratec (227kW/301PS) — original illustration 1, reference 3735Original colors & callouts · Select to enlarge

4. NOTICE: Make sure that all openings are sealed.

Remove the nut and disconnect the A/C condenser outlet line. Torque : 80 lb.in (9 Nm)

Source reference 3735
