Condenser - 2.3L EcoBoost (201kW/273PS) — 2016 workshop reference 3732

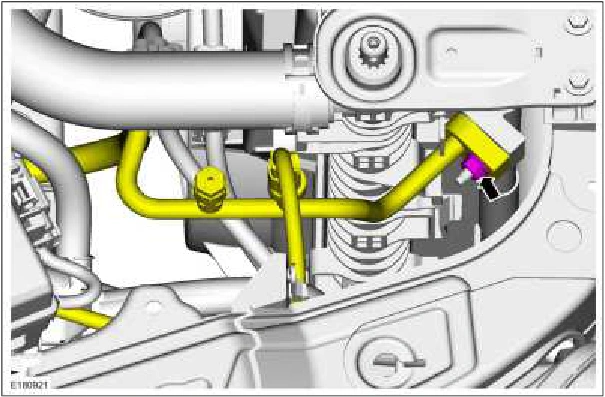

Condenser - 2.3L EcoBoost (201kW/273PS) — original illustration 1, reference 3732Original colors & callouts · Select to enlarge

7. Remove the air cleaner. Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - 2.3L EcoBoost (231kW/314PS), Removal and Installation).

8. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe (303-12A Intake Air Distribution and Filtering - 2.3L EcoBoost (231kW/314PS), Removal and Installation).

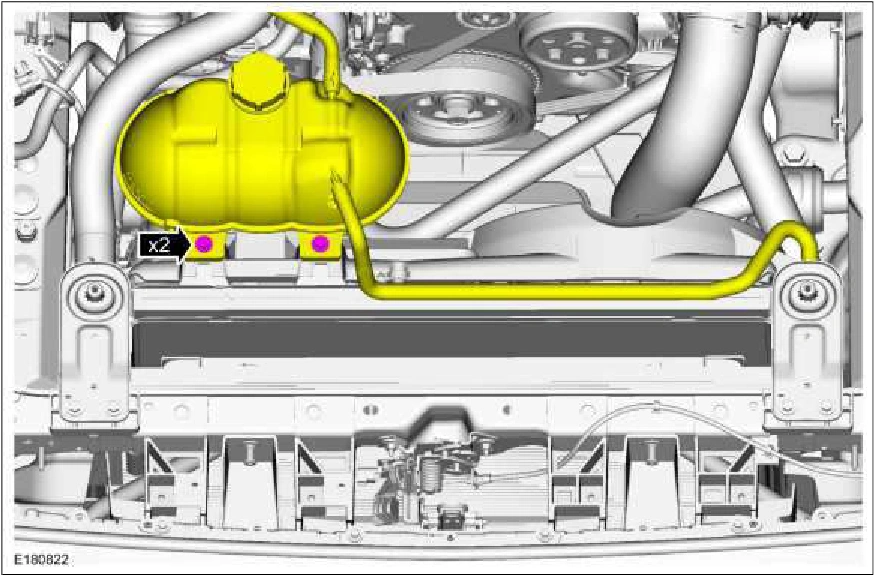

9. Remove the bolts and position the degas bottle aside. Torque : 80 lb.in (9 Nm)

Condenser - 2.3L EcoBoost (201kW/273PS) — original illustration 2, reference 3732Original colors & callouts · Select to enlarge

10. Remove the bolts and the upper radiator brackets. Torque : 97 lb.in (11 Nm)
