Condenser - 2.3L EcoBoost (201kW/273PS) — 2016 workshop reference 3733

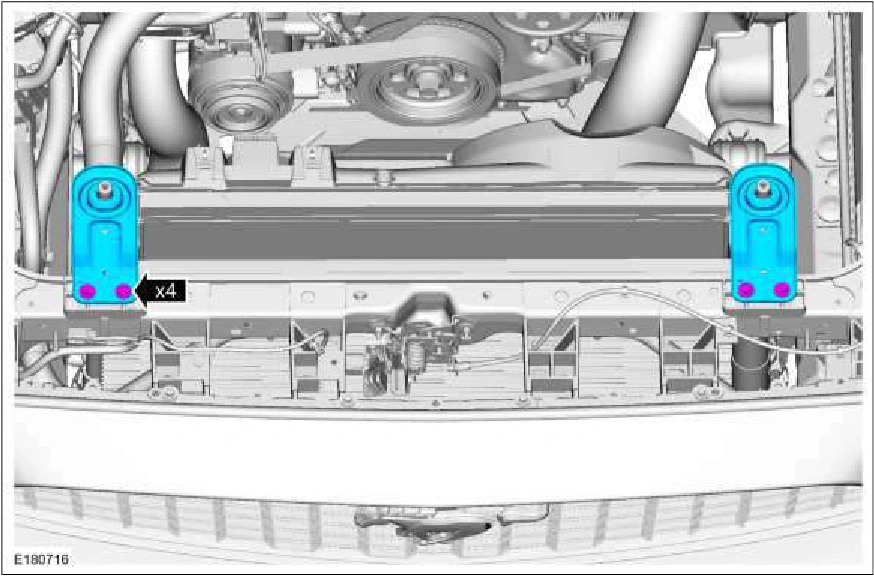

Condenser - 2.3L EcoBoost (201kW/273PS) — original illustration 1, reference 3733Original colors & callouts · Select to enlarge

11. NOTE: Front bumper removed for clarity.

1. Lift the radiator off the lower radiator support and position the radiator, transmission fluid cooler assembly and cooling fan motor and shroud toward the engine.

2. Release the tabs and remove the condenser.

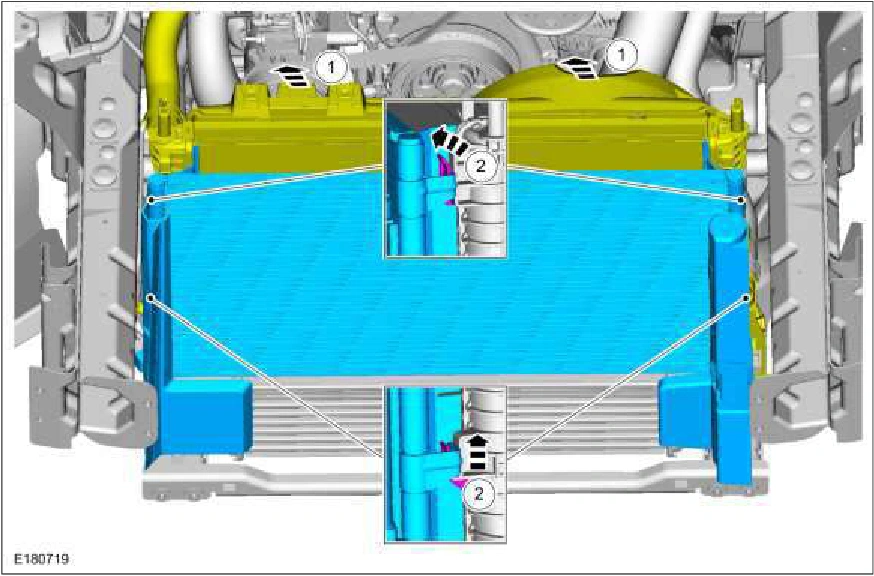

Condenser - 2.3L EcoBoost (201kW/273PS) — original illustration 2, reference 3733Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Add the correct amount of clean Polyalkylene Glycol (PAG) oil to the refrigerant system. Refer to: Refrigerant Oil Adding (412-00 Climate Control System - General Information, General Procedures).

Source reference 3733
