Variable Camshaft Timing (VCT) Unit — 2016 workshop reference 374

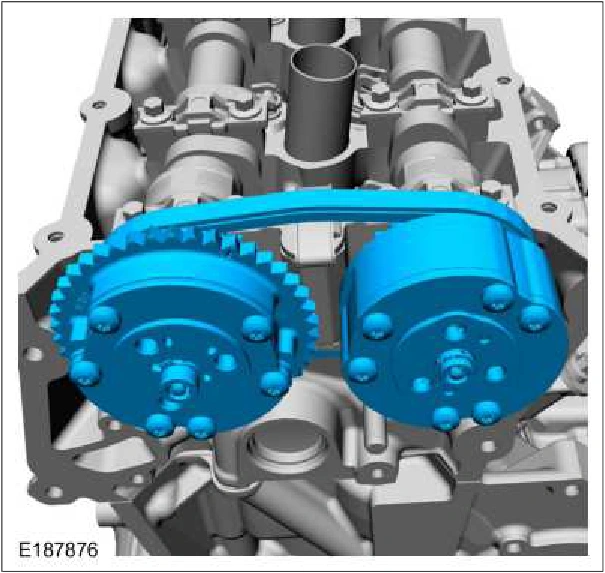

Variable Camshaft Timing (VCT) Unit — original illustration 1, reference 374Original colors & callouts · Select to enlarge

Left hand units

6. Remove the LH timing chain. Refer to: Timing Chain (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

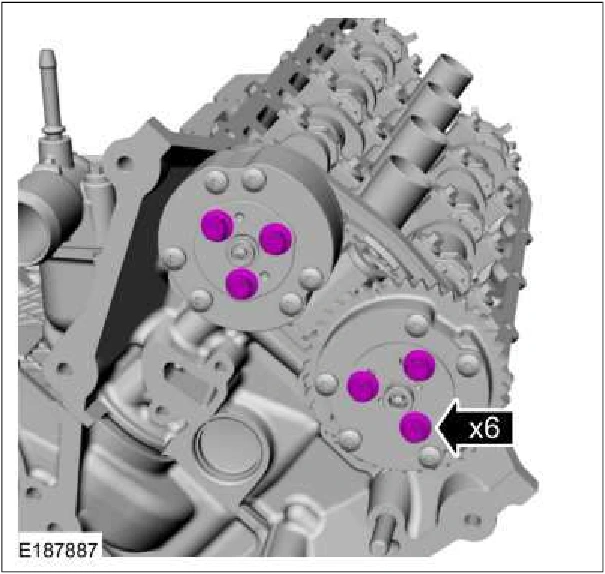

7. Remove the intake and exhaust VCT assembly bolts.

Variable Camshaft Timing (VCT) Unit — original illustration 2, reference 374Original colors & callouts · Select to enlarge

8. Slide the Variable Camshaft Timing VCT assemblies and secondary timing chain forward 2 mm (0.078 in).

Source reference 374
