Variable Camshaft Timing (VCT) Unit — 2016 workshop reference 375

Variable Camshaft Timing (VCT) Unit — original illustration 1, reference 375Original colors & callouts · Select to enlarge

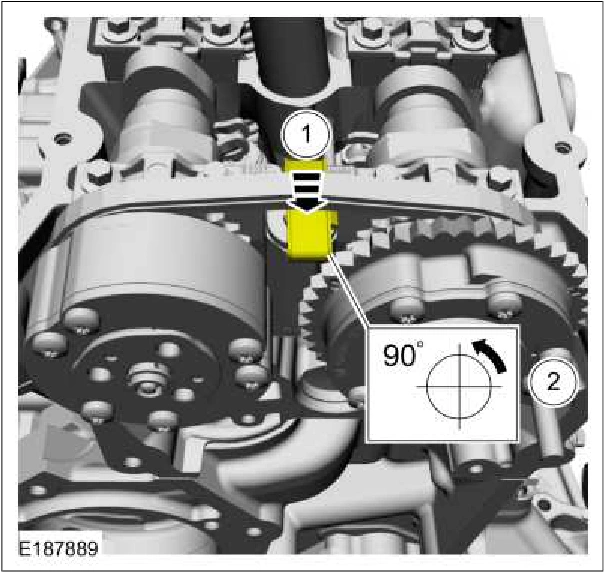

Step 9

1. Depress the secondary timing chain tensioner.

2. Turn the tensioner counterclockwise 90 degrees.

Variable Camshaft Timing (VCT) Unit — original illustration 2, reference 375Original colors & callouts · Select to enlarge

10. Remove the VCT assemblies and the secondary timing chain.

Source reference 375
