Condenser - 5.0L 32V Ti-VCT — 2016 workshop reference 3741

Condenser - 5.0L 32V Ti-VCT — original illustration 1, reference 3741Original colors & callouts · Select to enlarge

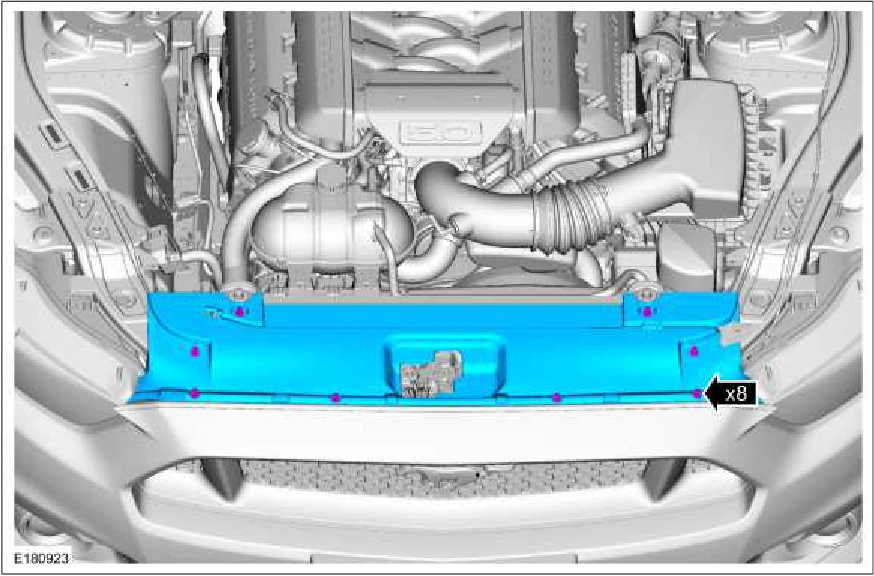

5. Remove the retainers and the radiator sight shield.

Condenser - 5.0L 32V Ti-VCT — original illustration 2, reference 3741Original colors & callouts · Select to enlarge

6. NOTICE: Make sure that all openings are sealed.

Remove the nut and disconnect the A/C compressor outlet line. Torque : 159 lb.in (18 Nm)

Source reference 3741
