Condenser Outlet Line - 3.7L Duratec (227kW/301PS)

412-00 Climate Control System - General Information

2016 MustangReference 3,759 / 6,619HTML edition
← Chapter contentsProcedure contents

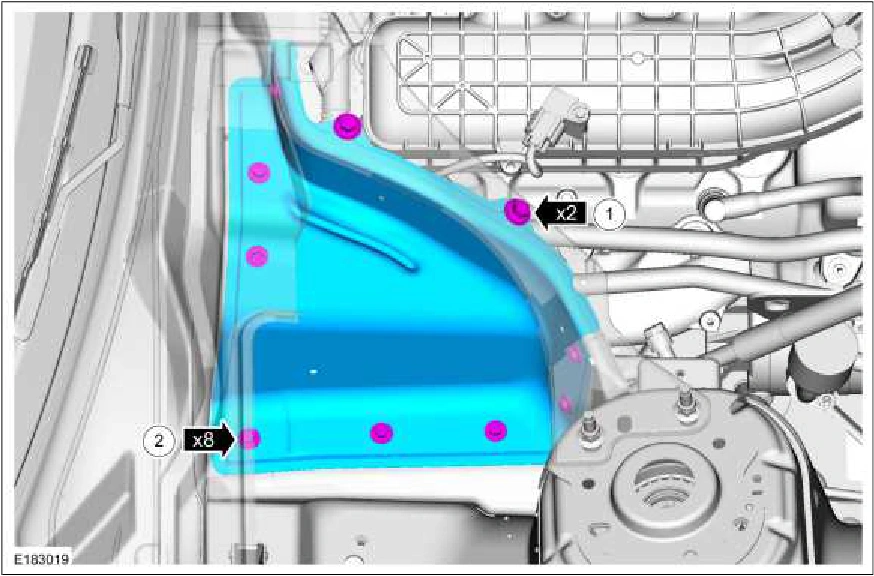

Condenser Outlet Line - 3.7L Duratec (227kW/301PS) — original illustration 1, reference 3759Original colors & callouts · Select to enlarge

10. Remove the nut and the Thermostatic Expansion Valve (TXV) bracket. Torque : 133 lb.in (15 Nm)

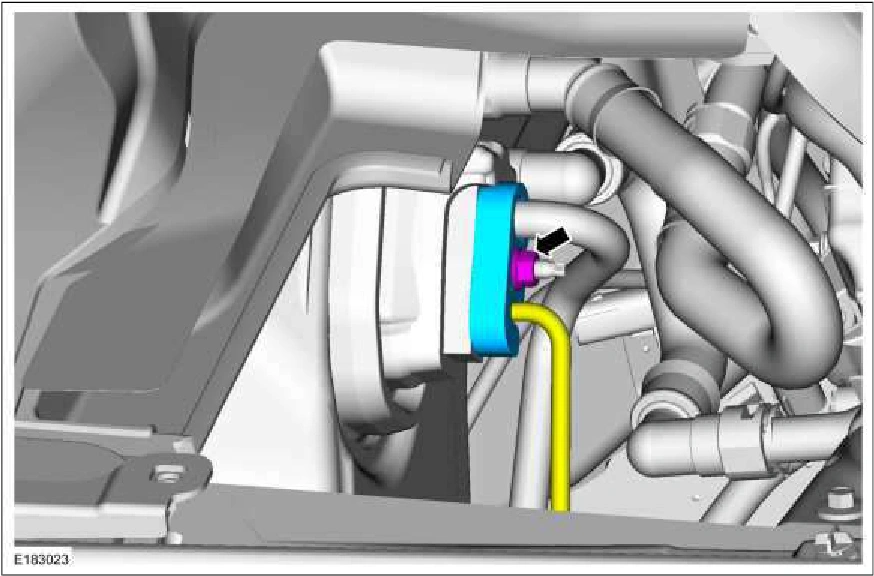

Condenser Outlet Line - 3.7L Duratec (227kW/301PS) — original illustration 2, reference 3759Original colors & callouts · Select to enlarge

11. Detach the A/C condenser outlet line.

Source reference 3759
