412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 01/14/2015

Footwell Air Discharge Temperature Sensor

Removal

1. Remove the driver knee airbag. Refer to: Driver Knee Airbag (501-20B Supplemental Restraint System, Removal and Installation).

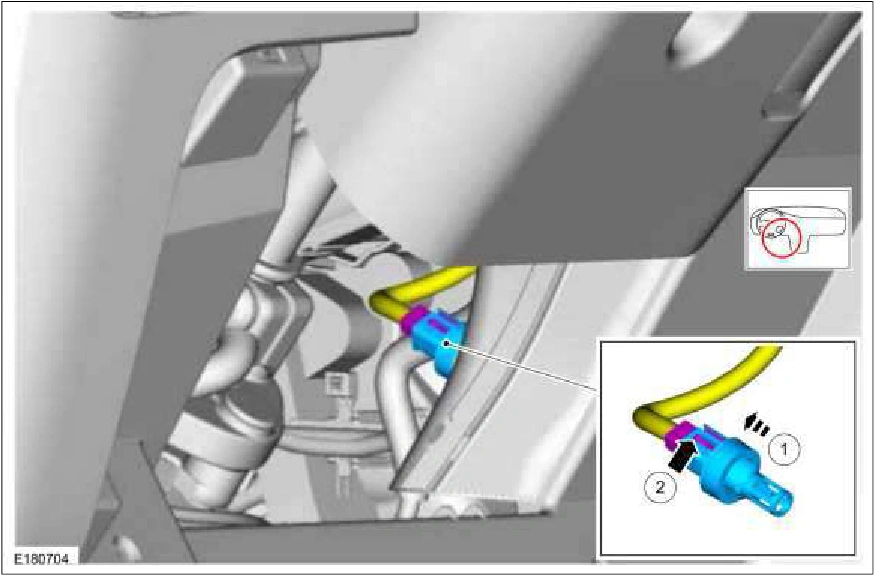

Step 2

1. Remove the footwell air discharge temperature sensor.

2. Disconnect the footwell air discharge temperature sensor connector.

Footwell Air Discharge Temperature Sensor — original illustration 1, reference 3795Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Copyright © 2016 Ford Motor Company
