Evaporator Outlet Line - 5.2L 32V Ti-VCT — 2016 workshop reference 3792

6. Remove the 10 bolts and the battery heat shield. Torque :

1.: 26 lb.ft (35 Nm)

2.: 80 lb.in (9 Nm)

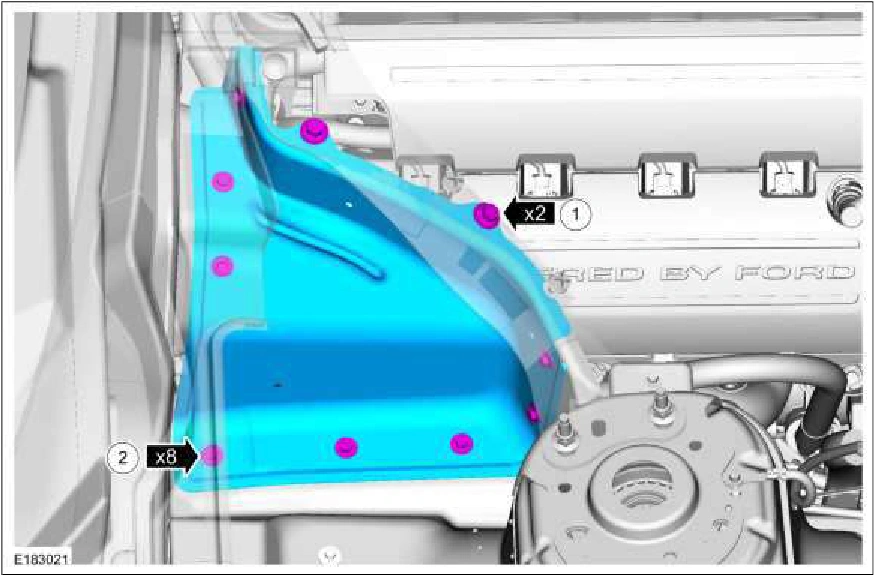

Evaporator Outlet Line - 5.2L 32V Ti-VCT — original illustration 1, reference 3792Original colors & callouts · Select to enlarge

7. Remove the nut, the Thermostatic Expansion Valve (TXV) bracket and disconnect the evaporator outlet line.

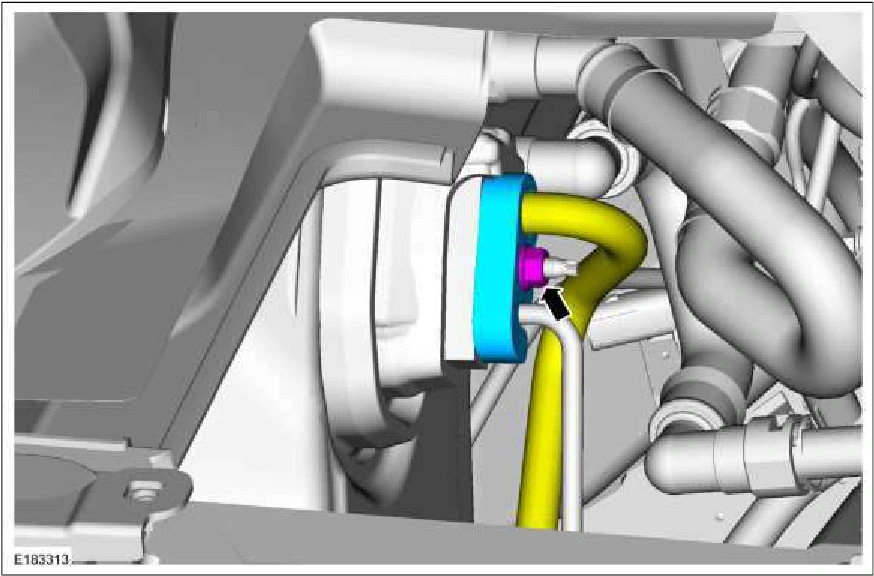

Evaporator Outlet Line - 5.2L 32V Ti-VCT — original illustration 2, reference 3792Original colors & callouts · Select to enlarge

8. NOTICE: Make sure that all openings are sealed.

Remove the nuts and the evaporator outlet line. Torque :

1.: 62 lb.in (7 Nm)

Source reference 3792
