Evaporator Outlet Line - 5.0L 32V Ti-VCT — 2016 workshop reference 3789

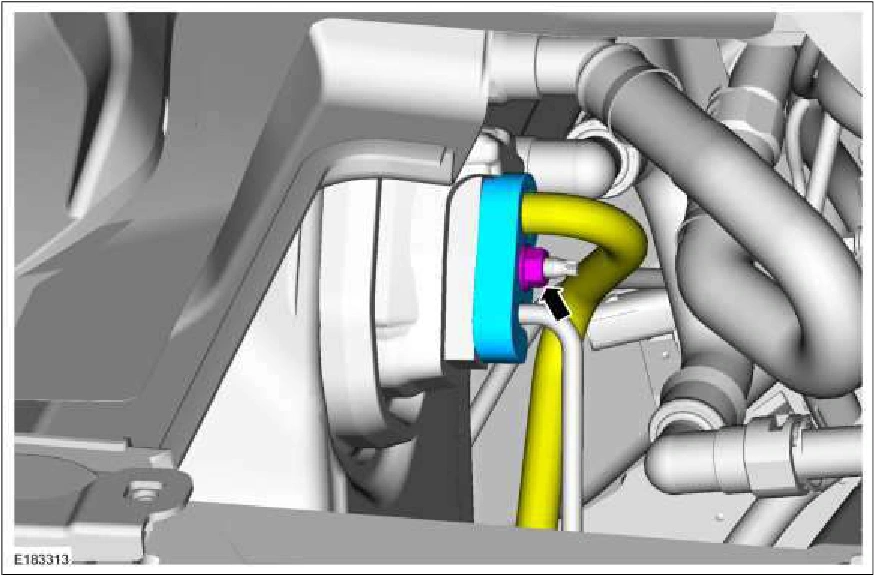

Evaporator Outlet Line - 5.0L 32V Ti-VCT — original illustration 1, reference 3789Original colors & callouts · Select to enlarge

8. NOTICE: Make sure that all openings are sealed.

Remove the nuts and the evaporator outlet line. Torque :

1.: 62 lb.in (7 Nm)

2.: 159 lb.in (18 Nm)

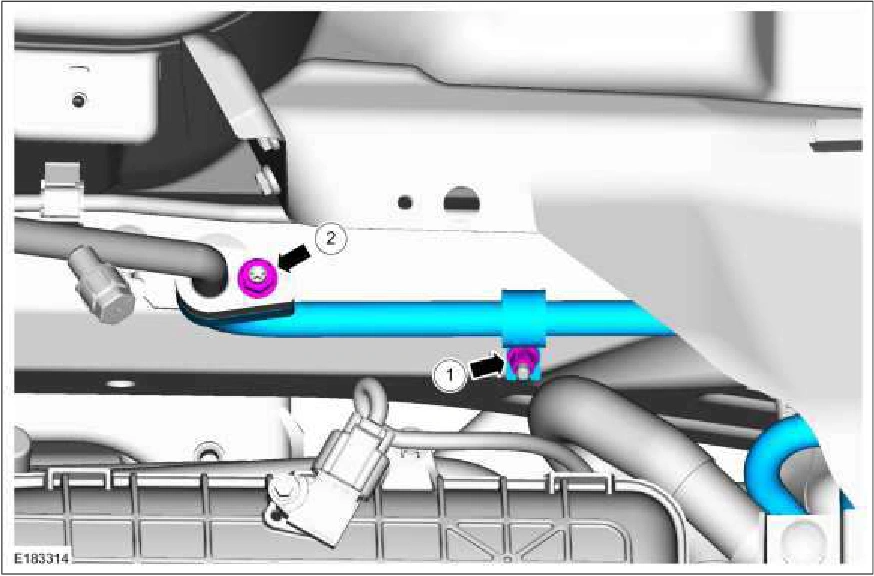

Evaporator Outlet Line - 5.0L 32V Ti-VCT — original illustration 2, reference 3789Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 3789
