412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 05/4/2016

Evaporator Outlet Line - 5.2L 32V Ti-VCT

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).

2. Remove the battery tray. Refer to: Battery Tray (414-01 Battery, Mounting and Cables, Removal and Installation).

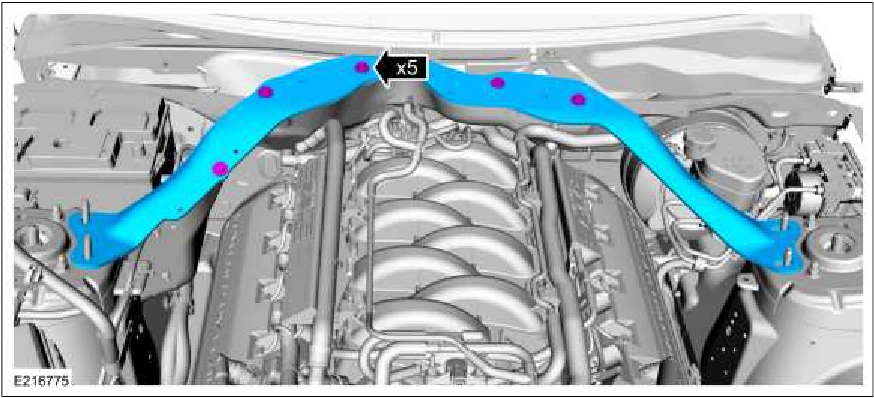

3. Detach the wiring harness retainer. Remove and discard the nuts. Remove the strut tower cross brace.

Evaporator Outlet Line - 5.2L 32V Ti-VCT — original illustration 1, reference 3791Original colors & callouts · Select to enlarge

4. Remove the cowl panel grille. Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).

5. Remove the fasteners and the cowl extension. Torque : 26 lb.ft (35 Nm)

Evaporator Outlet Line - 5.2L 32V Ti-VCT — original illustration 2, reference 3791Original colors & callouts · Select to enlarge
