In-Vehicle Temperature and Humidity Sensor

412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 01/14/2015

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

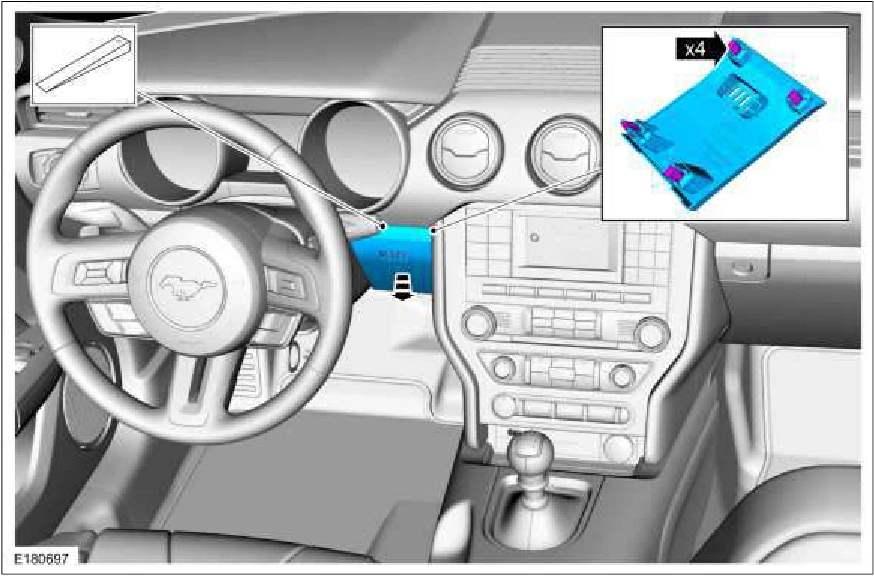

1. Remove the lower instrument panel cover. Use the General Equipment: Interior Trim Remover

In-Vehicle Temperature and Humidity Sensor — original illustration 1, reference 3799Original colors & callouts · Select to enlarge

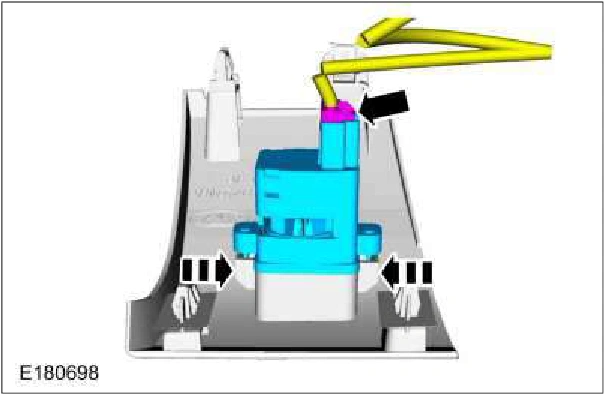

2. Disconnect the electrical connector and remove the in-vehicle temperature and humidity sensor.

In-Vehicle Temperature and Humidity Sensor — original illustration 2, reference 3799Original colors & callouts · Select to enlarge

Installation

Source reference 3799
