Passenger Side Register — 2016 workshop reference 3802

Passenger Side Register — original illustration 1, reference 3802Original colors & callouts · Select to enlarge

3. Remove the retainers and instrument panel passenger side finish panel. Torque : 22 lb.in (2.5 Nm)

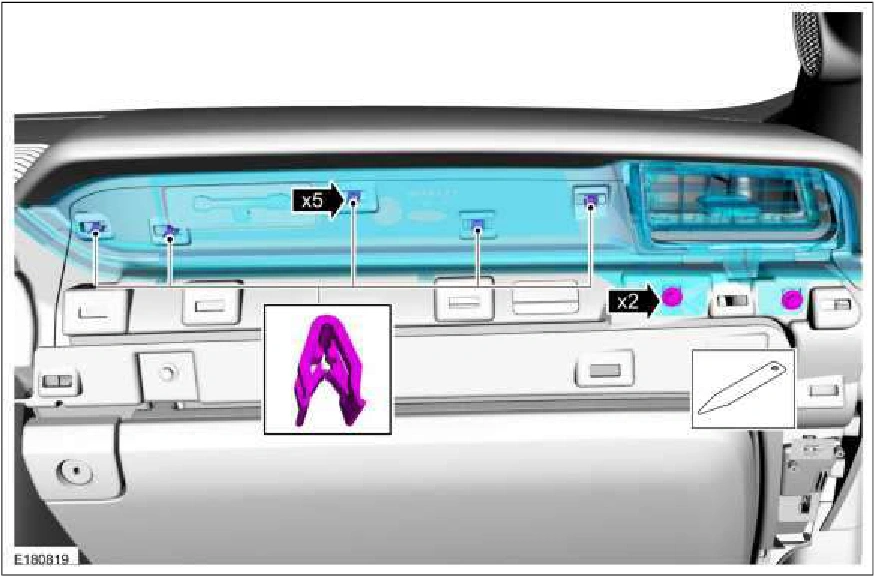

Passenger Side Register — original illustration 2, reference 3802Original colors & callouts · Select to enlarge

4. Release the clips and remove the passenger side register assembly.
