Passenger Side Temperature Door Actuator

412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 01/14/2015

Removal

NOTE: If possible, place the temperature door in the mid-position. This will unload the tension on the temperature door to ease replacement of the actuator.

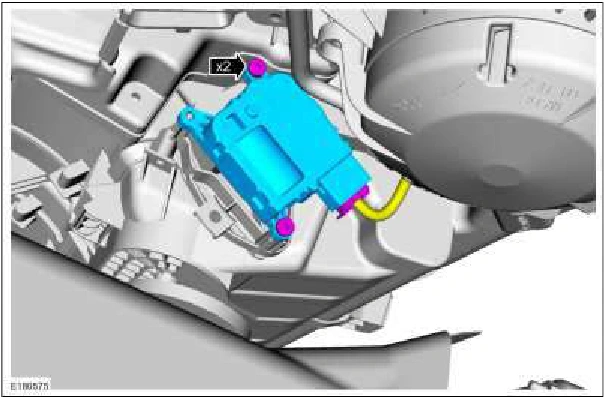

1. Disconnect the passenger side temperature door actuator connector. Remove the retainers and the passenger side temperature door actuator.

Passenger Side Temperature Door Actuator — original illustration 1, reference 3804Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 3804
