Receiver Drier - 2.3L EcoBoost (201kW/273PS) — 2016 workshop reference 3806

412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 01/14/2015

Receiver Drier - 2.3L EcoBoost (201kW/273PS)

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the condenser. Refer to: Condenser - 2.3L EcoBoost (201kW/273PS) (412-00 Climate Control System - General Information, Removal and Installation).

2. Remove the air deflector.

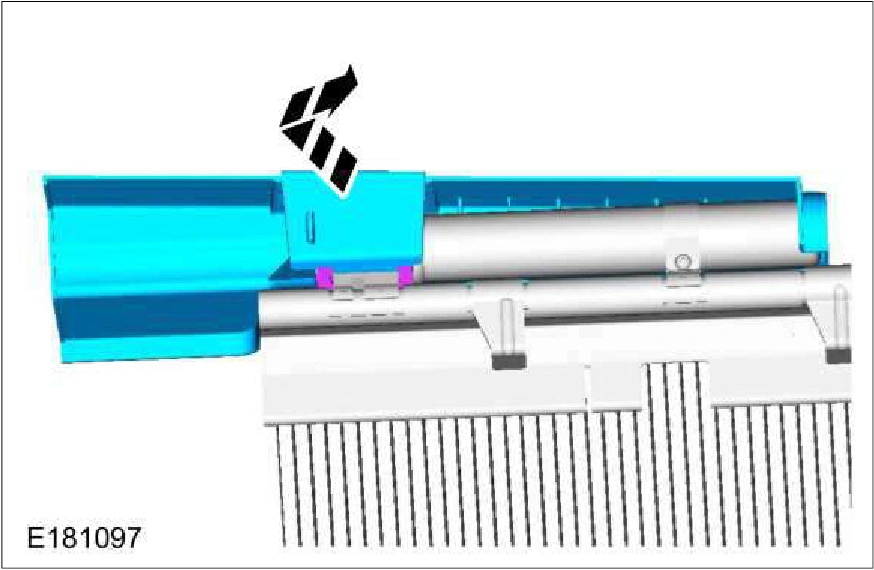

Receiver Drier - 2.3L EcoBoost (201kW/273PS) — original illustration 1, reference 3806Original colors & callouts · Select to enlarge

Step 3

1. Remove the bolts. Torque : 80 lb.in (9 Nm)

2. Remove the retainer and the receiver drier.

Source reference 3806
