Receiver Drier - 5.0L 32V Ti-VCT

412-00 Climate Control System - General Information

2016 MustangReference 3,813 / 6,619HTML edition
← Chapter contentsProcedure contents
Receiver Drier - 5.0L 32V Ti-VCT — original illustration 1, reference 3813Original colors & callouts · Select to enlarge

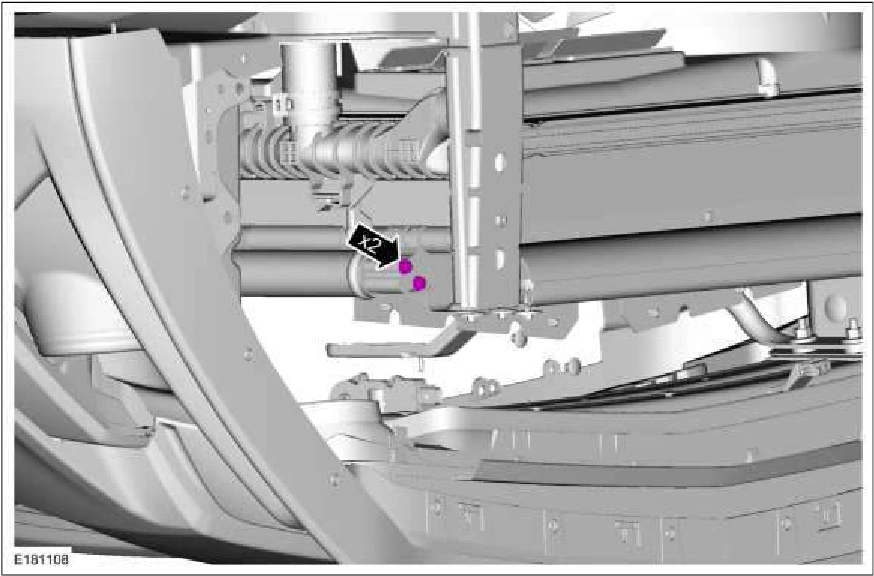

5. Remove the bolts. Torque : 80 lb.in (9 Nm)

Receiver Drier - 5.0L 32V Ti-VCT — original illustration 2, reference 3813Original colors & callouts · Select to enlarge

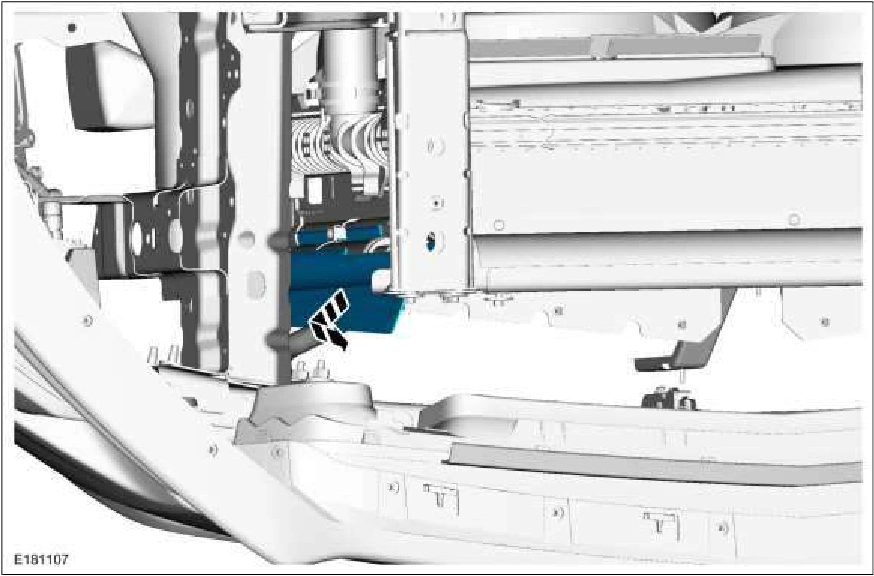

6. Remove the retainer and the receiver drier.

Source reference 3813
