412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 01/14/2015

Thermostatic Expansion Valve - 2.3L EcoBoost (201kW/273PS)

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).

2. NOTICE: Make sure that all openings are sealed.

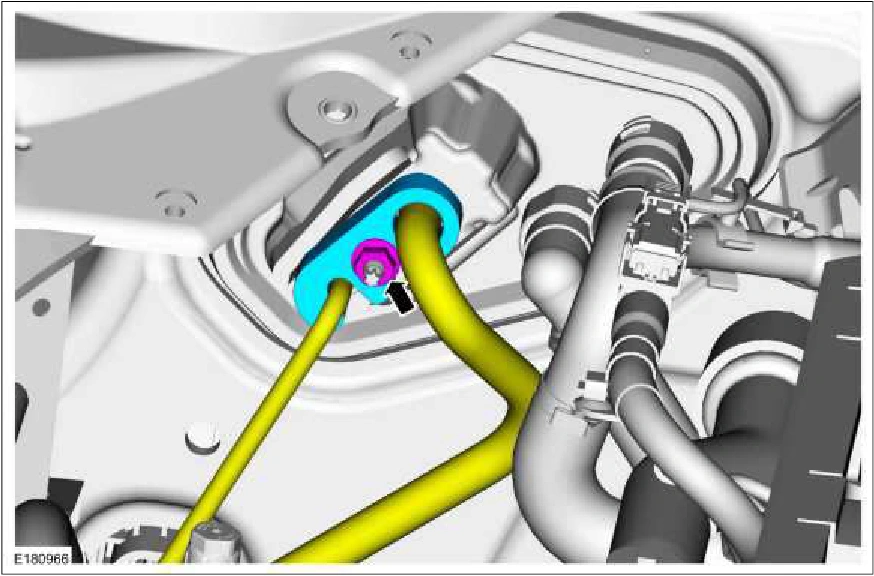

Remove the nut and the Thermostatic Expansion Valve (TXV) bracket, and disconnect the A/C condenser outlet line and the evaporator outlet line. Torque : 133 lb.in (15 Nm)

Thermostatic Expansion Valve - 2.3L EcoBoost (201kW/273PS) — original illustration 1, reference 3822Original colors & callouts · Select to enlarge

3. Remove the bolts and the Thermostatic Expansion Valve (TXV). Torque : 62 lb.in (7 Nm)
