412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 01/14/2015

Sunload Sensor

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

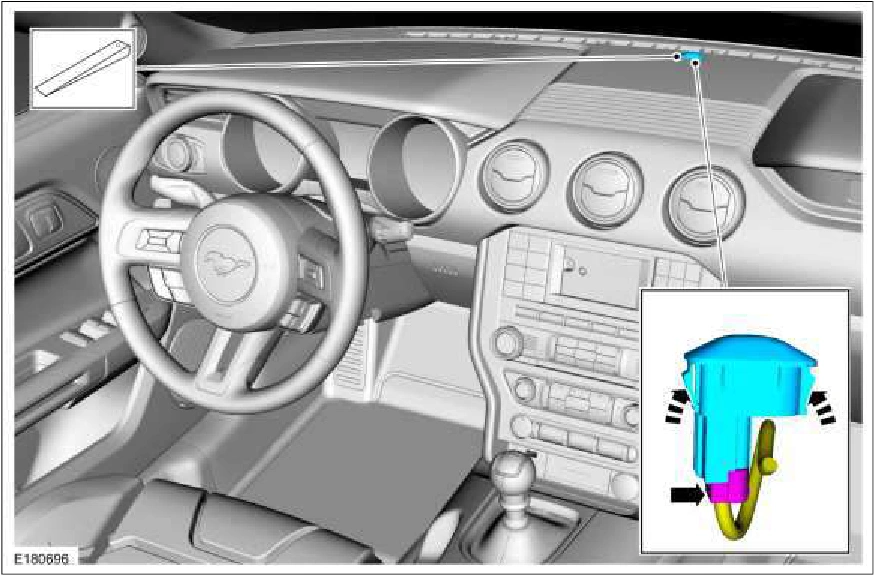

1. Remove the sunload sensor and disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

Sunload Sensor — original illustration 1, reference 3820Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Copyright © 2016 Ford Motor Company
