Receiver Drier - 5.2L 32V Ti-VCT

412-00 Climate Control System - General Information

2016 MustangReference 3,817 / 6,619HTML edition
← Chapter contentsProcedure contents
Receiver Drier - 5.2L 32V Ti-VCT — original illustration 1, reference 3817Original colors & callouts · Select to enlarge

5. Remove the air deflector.

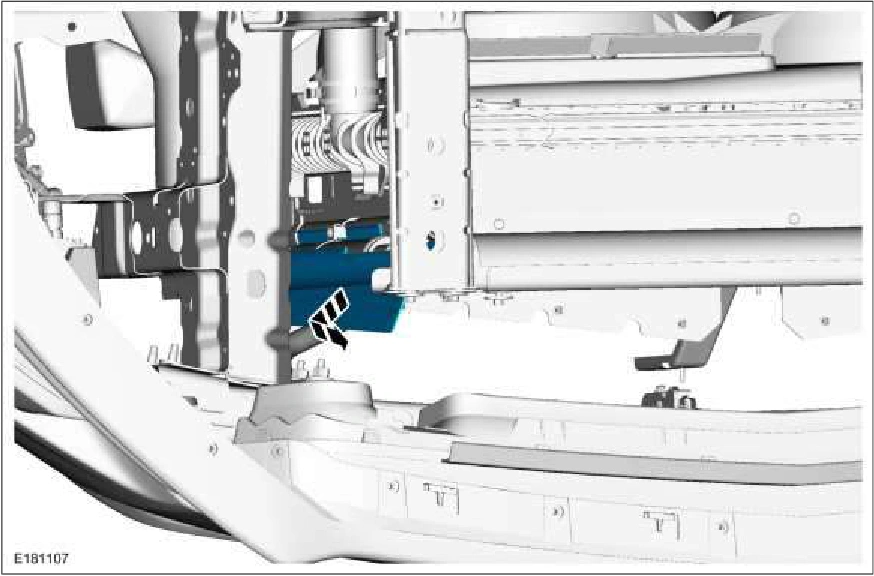

Receiver Drier - 5.2L 32V Ti-VCT — original illustration 2, reference 3817Original colors & callouts · Select to enlarge

6. Remove the bolts. Torque : 80 lb.in (9 Nm)

Source reference 3817

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
