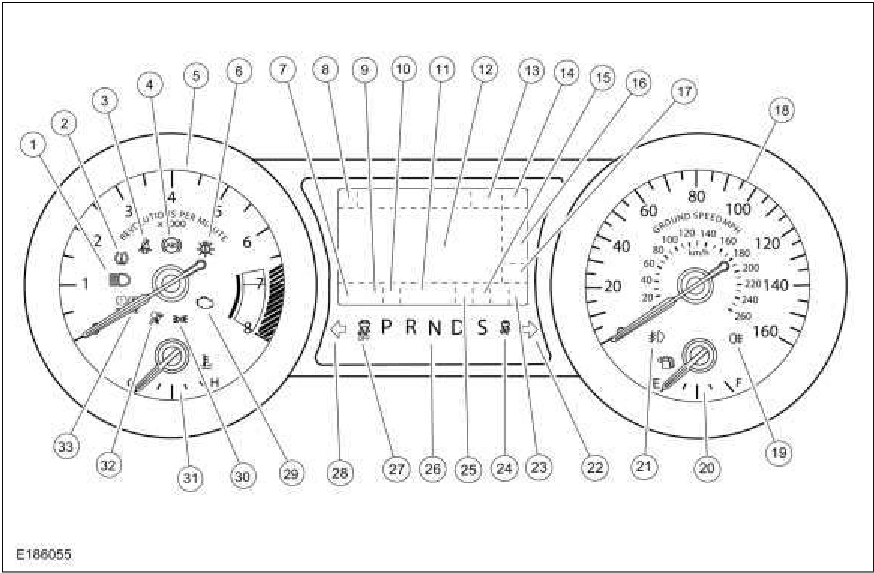

Base IPC
Item | Description |
|---|---|
1 | High beam indicator |
2 | TPMS indicator |
3 | Safety belt warning indicator |
4 | ABS indicator |
5 | Tachometer |
6 | LED low beam malfunction indicator |
7 | Odometer display |
8 | Menu navigation indicator |
9 | Upshift RTT (if equipped) |
10 | SelectShift® display |
11 | Rotating RTT display area Engine over-temperature Hood ajar Low battery Low fuel Low oil pressure Powertrain malfunction (wrench) |
12 | Main message center display area |
13 | Overspeed warning RTT |
14 | Compass |
15 | Drive mode RTT display Snow-wet Sport Sport plus Track |
16 | ACC display (if equipped) |
