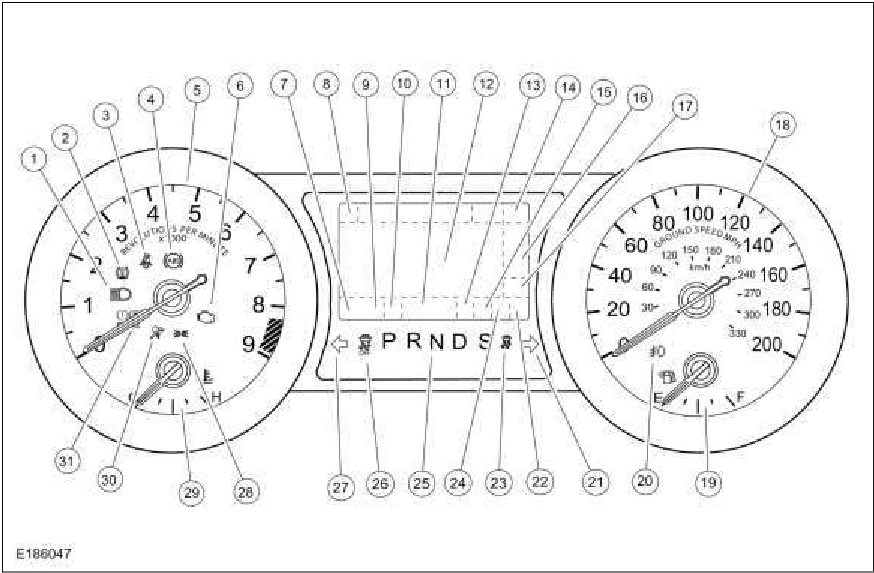

Item | Description |
|---|---|
17 | Digital speed display |
18 | Speedometer |
19 | Rear fog lamp indicator (if equipped) |
20 | Fuel gauge |
21 | Front fog lamp indicator |
22 | RH turn indicator |
23 | Cruise control RTT |
24 | Stability-traction control indicator (sliding car icon) |
25 | Launch control RTT display (if equipped) |
26 | PRNDL display |
27 | Stability-traction control disabled indicator (sliding car OFF icon) |
28 | LH turn indicator |
29 | MIL |
30 | Lights on indicator |
31 | Temperature gauge |
32 | Airbag warning indicator |
33 | Brake warning indicator |
SVT IPC
SVT IPC
Item | Description |
|---|---|
1 | High beam indicator |
2 | TPMS indicator |
