Instrument Panel Cluster (IPC) - System Operation and Component Description
Base Part Number: 10849
System Operation

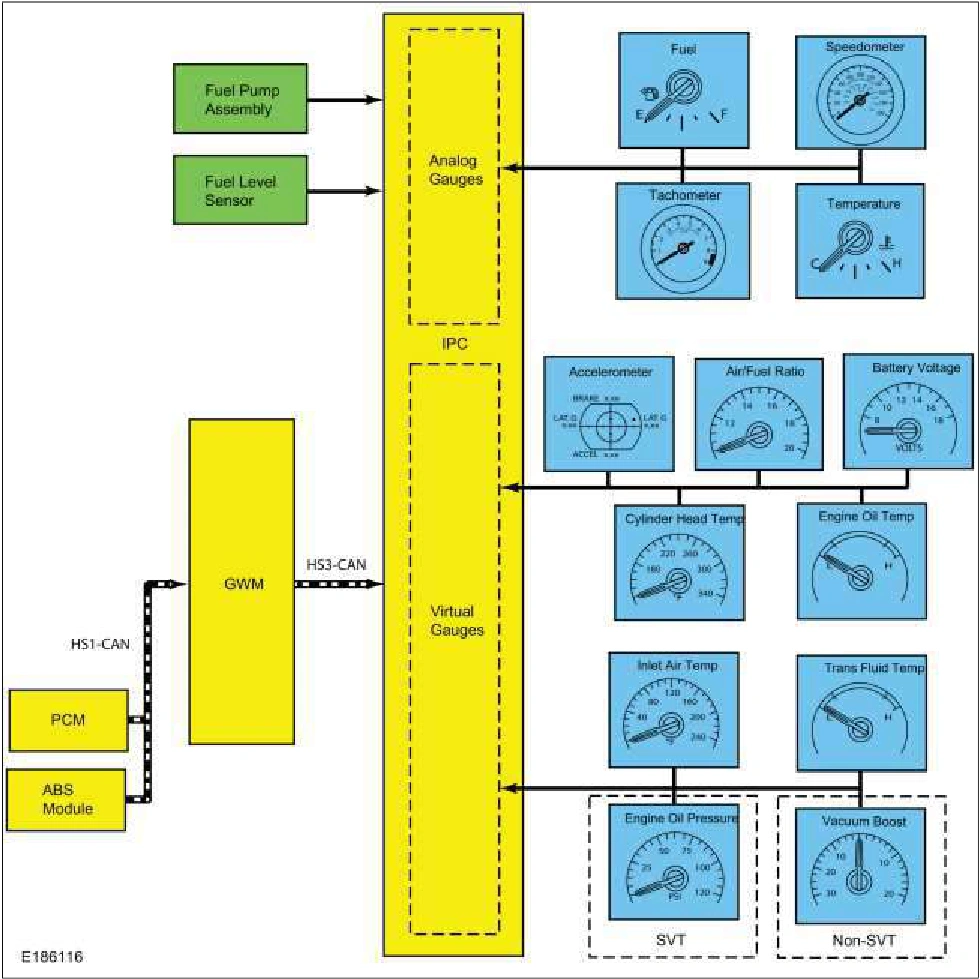

System Diagram - Gauges
Network Message Chart - IPC Gauges
Module Network Input Messages - IPC
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Air fuel ratio display | PCM | Input used to control the air fuel ratio virtual gauge display. |
