Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Cylinder head temperature data | PCM | Input used to control the cylinder head temperature virtual gauge display. |
Engine air inlet temperature data | PCM | Input used to control the inlet air temperature virtual gauge display. |
Engine coolant temperature data | PCM | Input used to control the engine temperature gauge. |
Engine oil temperature | PCM | Input used to control the engine oil temperature virtual gauge display. |
Engine rpm data | PCM | Input used to control the tachometer. |
Ignition status | BCM | Input used to provide ignition RUN, START and ACC states. |
Transmission fluid temperature data | PCM | Input used to control the transmission oil temperature virtual gauge display. |
Vacuum/boost display | PCM | Input used to control the vacuum boost virtual gauge display. |
Vehicle lateral acceleration | ABS module | Lateral input used to display the accelerometer. |
Vehicle longitudinal acceleration | ABS module | Longitudinal input used to display the accelerometer. |
Vehicle speed | PCM | Input used to control the speedometer. |
Module Network Input Messages - PCM
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Wheel speed data | ABS module | Input used to generate the vehicle speed signal. |

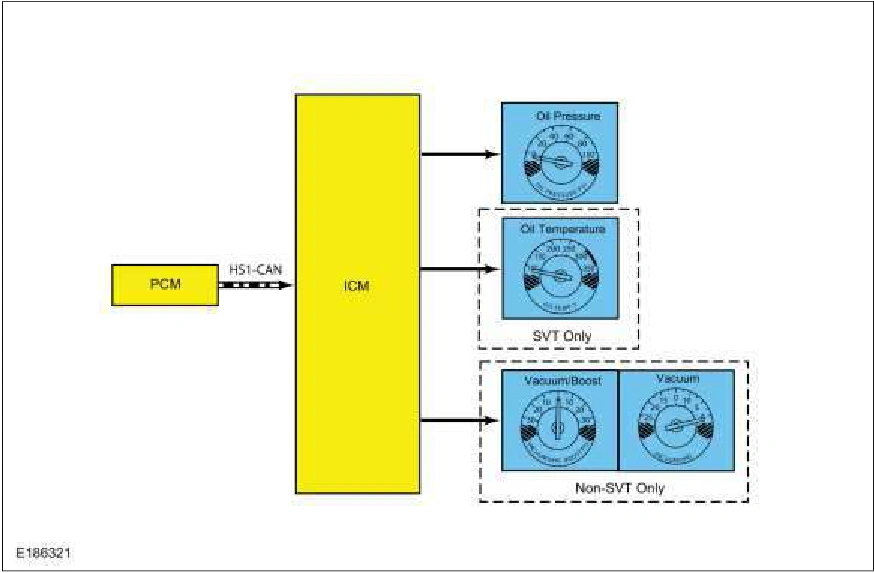

System Diagram - ICM Gauges
