Network Message Chart - ICM Gauges
Module Network Input Messages - ICM
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Ignition status | BCM | Input used to provide ignition RUN, START and ACC states. |
Oil pressure warning indicator request | PCM | Input used to control the engine oil pressure gauge. |
Vacuum/boost display | PCM | Input used to control the vacuum boost gauge. |

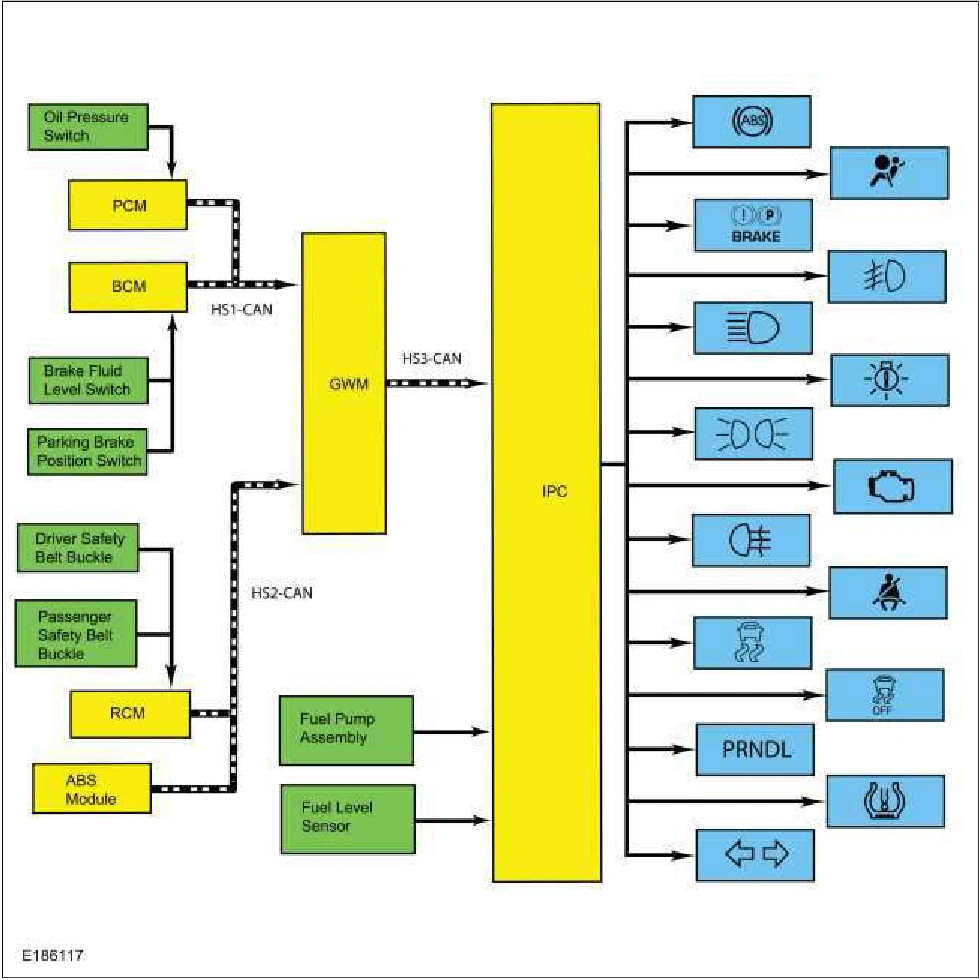

System Diagram - Indicators
Network Message Chart - Indicators
Module Network Input Messages - IPC
Source reference 3866
