413-13A Parking Aid - Vehicles With: Rear Parking Aid 2016 Mustang

Description and Operation Procedure revision date: 08/15/2014

Parking Aid - Component Location

Component Location, Parking Aid - Audible

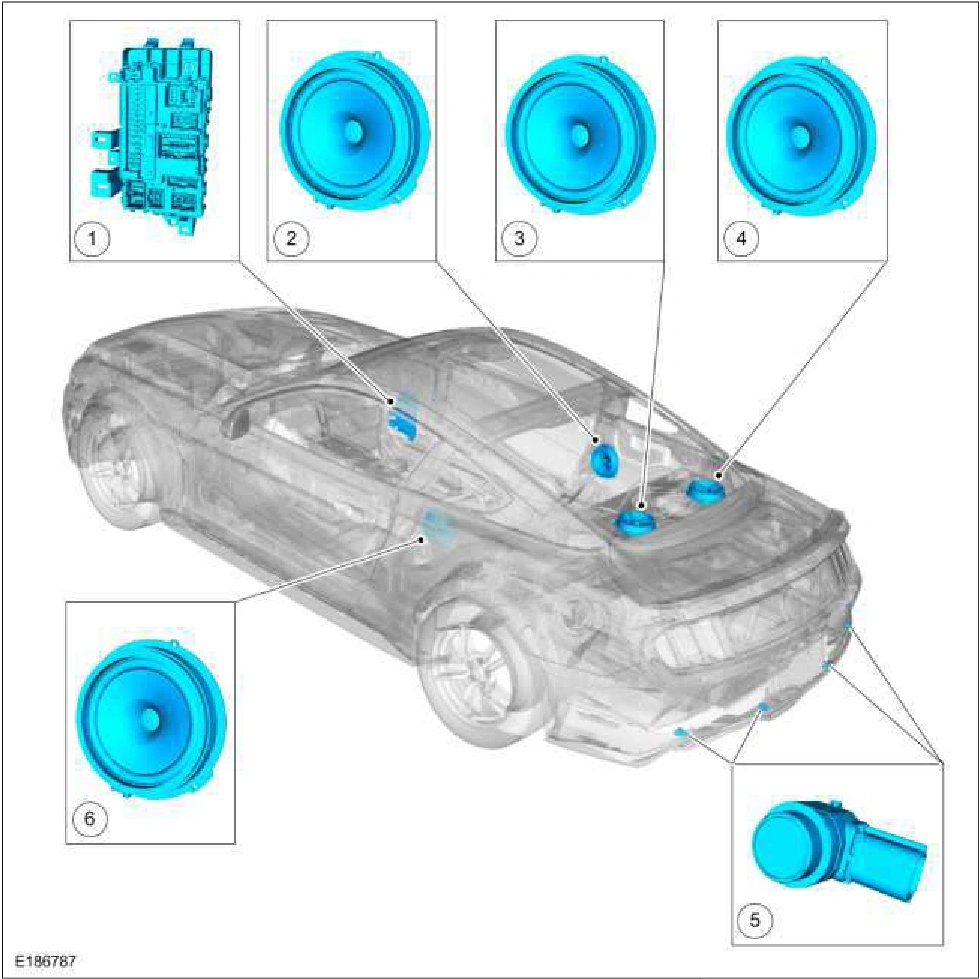

Parking Aid - Component Location — original illustration 1, reference 3932Original colors & callouts · Select to enlarge

Item

Description

1

PAM (integral to the BCM)

2

RH rear convertible speaker (part of audio system)

3

LH rear sedan speaker (part of audio system)

4

RH rear sedan speaker (part of audio system)

5

Rear parking aid sensors

6

LH rear convertible speaker (part of audio system)

Copyright © 2016 Ford Motor Company

Source reference 3932
