Parking Aid - System Operation and Component Description

System Operation

Parking Aid - Audible

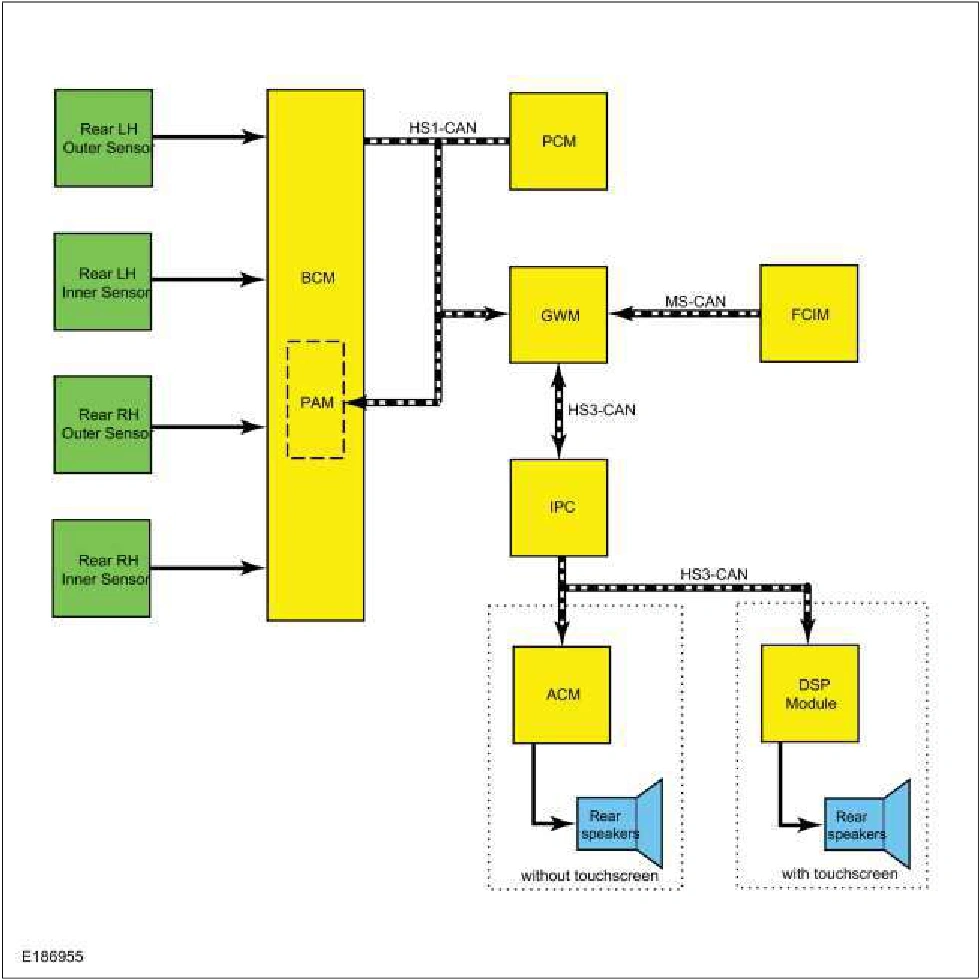

System Diagram

Parking Aid - System Operation and Component Description — original illustration 1, reference 3935Original colors & callouts · Select to enlarge

Network Message Chart

PAM Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Ignition key type	BCM	Used to disable the parking aid menus if a MyKey® is in use.
