Rear Parking Aid Sensor

413-13A Parking Aid - Vehicles With: Rear Parking Aid 2016 Mustang

Removal and Installation Procedure revision date: 01/15/2016

Removal

1. Remove the rear bumper cover. Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

2. Separate the wiring harness guides and position the harness aside.

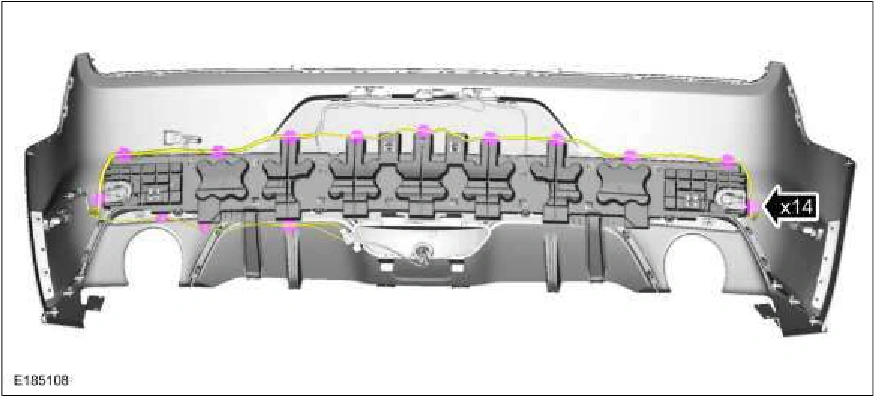

Rear Parking Aid Sensor — original illustration 1, reference 3984Original colors & callouts · Select to enlarge

3. Remove the pin-type retainers, release the clips and remove the rear bumper cover reinforcement.

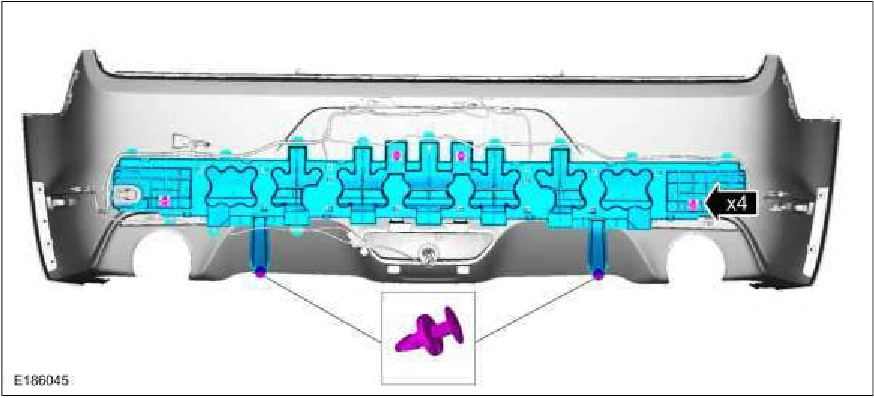

Rear Parking Aid Sensor — original illustration 2, reference 3984Original colors & callouts · Select to enlarge

4. Disconnect the appropiate sensor electrical connector.

Source reference 3984
