Rear Parking Aid Sensor — 2016 workshop reference 3985

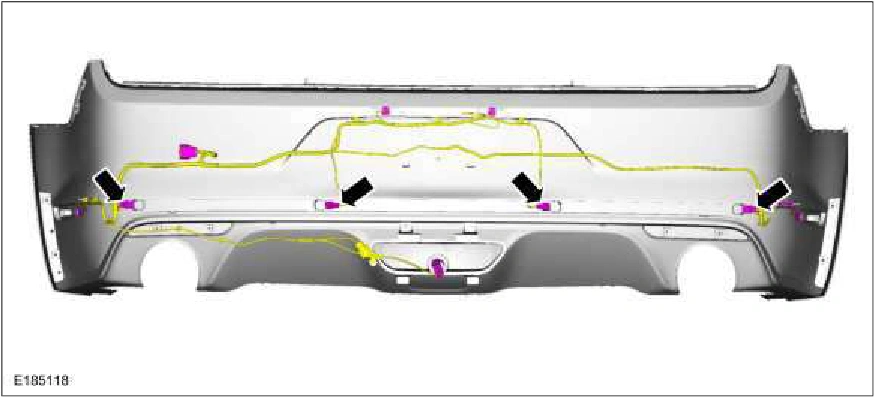

Rear Parking Aid Sensor — original illustration 1, reference 3985Original colors & callouts · Select to enlarge

5. Release the retaining clips and remove the park aid sensor.

Rear Parking Aid Sensor — original illustration 2, reference 3985Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Check the alignment of the park aid sensors. Refer to: Azimuth System Check (413-13A Parking Aid - Vehicles With: Rear Parking Aid, General Procedures). Refer to: Elevation System Check (413-13A Parking Aid - Vehicles With: Rear Parking Aid, General Procedures).
