413-13B Parking Aid - Vehicles With: Parking Aid Camera 2016 Mustang

Description and Operation Procedure revision date: 01/13/2015

Parking Aid - Component Location

Rear Video Camera

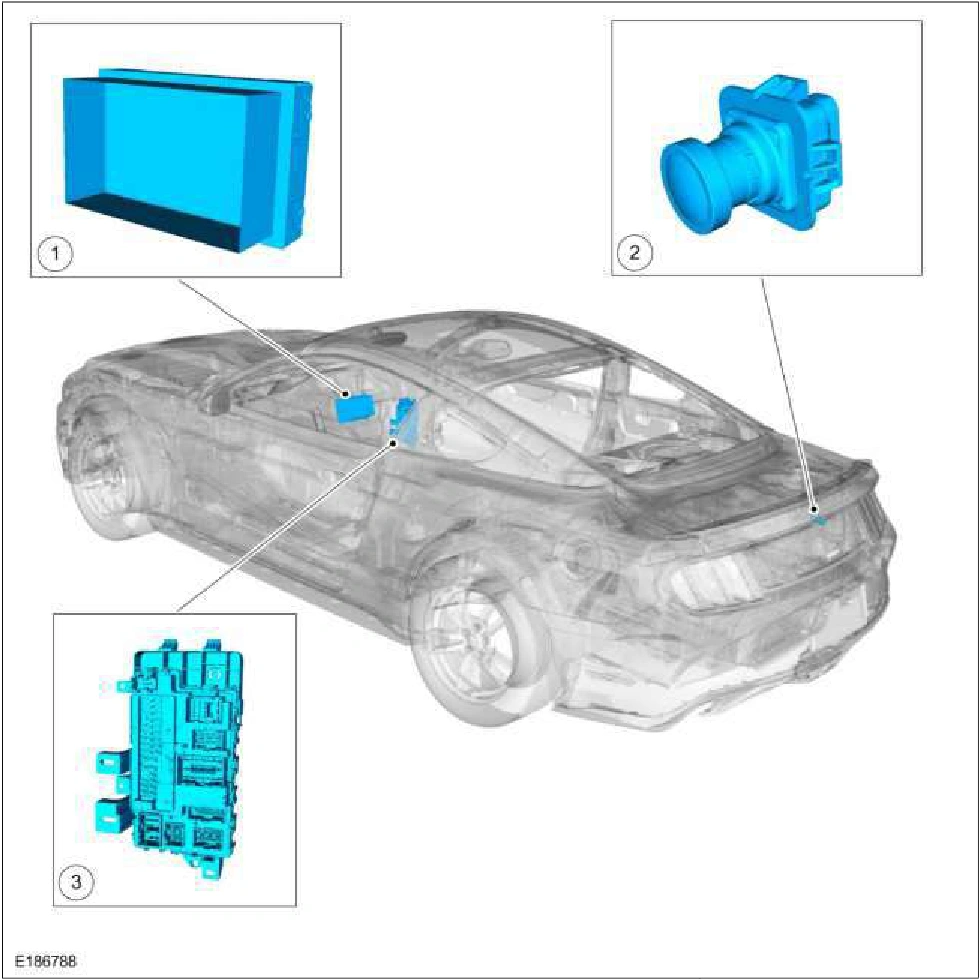

Parking Aid - Component Location — original illustration 1, reference 3986Original colors & callouts · Select to enlarge
Item	Description
1	Centerstack infotainment display (FDIM shown FCDIM similar)
2	Rear parking aid camera
3	BCM
