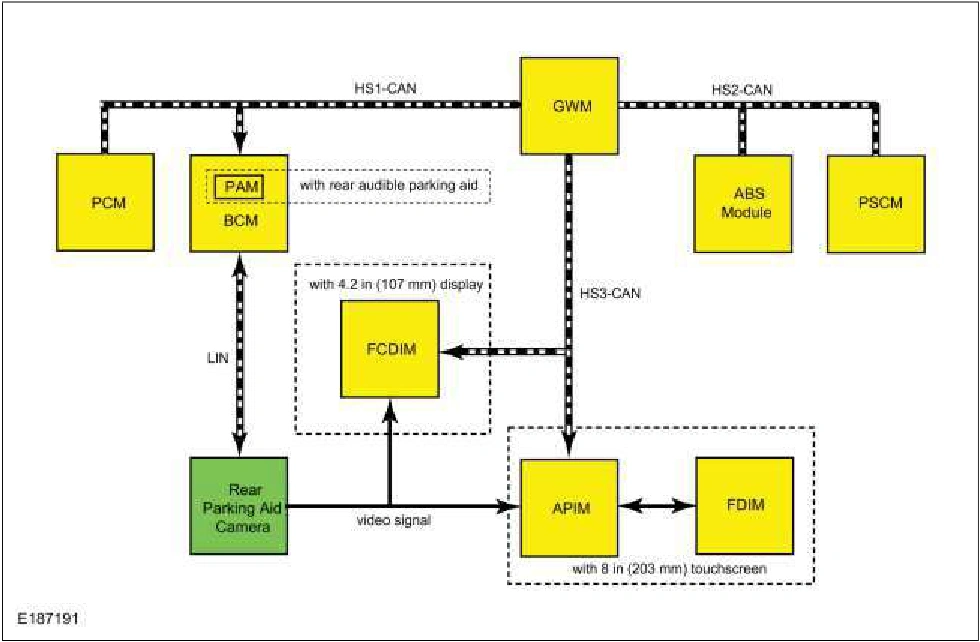

Parking Aid - System Operation and Component Description

Rear park aid camera commands

APIM

Used to command the visual park aid alert and zoom level on and off based on driver inputs through the FDIM.

Parking aid range to object

PAM

Used to generate the visual highlights in the zone where an object is detected by the parking aid system.

Steering angle

ABS Module

Used to generate the intended vehicle path for the active guideline feature.

Reverse gear state

PCM

Used to enable the active guidelines and visual park aid features when reverse gear is selected.

Vehicle speed

PCM

Used to support the rear parking aid camera stand by mode by enabling and disabeling the rear parking aid camera. Turns off the camera display when the vehicle speed is 10 mph (16 km/h) or greater or turn on the camera display when the vehicle speed is 8 mph (13 km/h) or lower.
