Rear Parking Aid Camera — 2016 workshop reference 4022

Rear Parking Aid Camera — original illustration 1, reference 4022Original colors & callouts · Select to enlarge

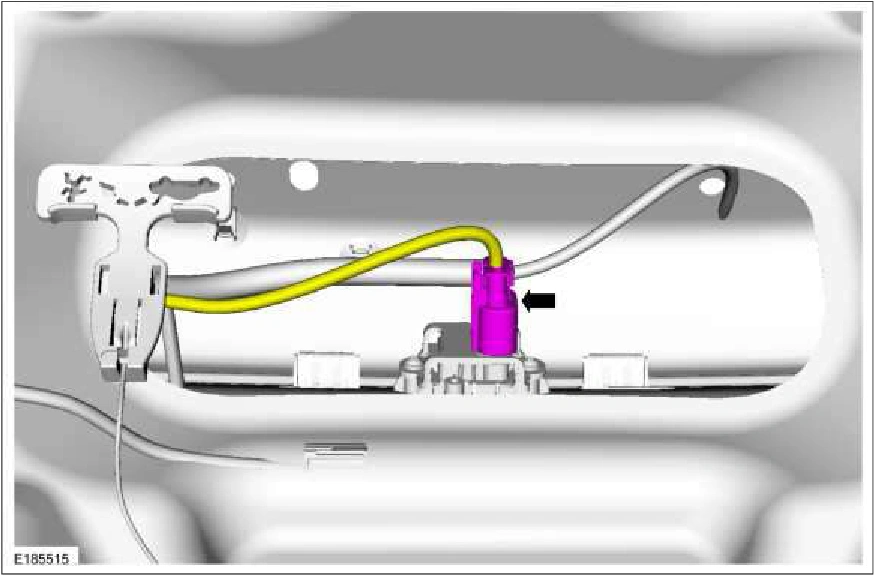

3. Disconnect the rear view camera electrical connector.

Rear Parking Aid Camera — original illustration 2, reference 4022Original colors & callouts · Select to enlarge

4. Remove the rear view camera.

1. Remove the screws.

2. Remove the rear view camera bracket.

3. Remove the rear view camera.
