Rear Parking Aid Camera

413-13B Parking Aid - Vehicles With: Parking Aid Camera 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Removal

NOTE: Coupe shown, convertable similar.

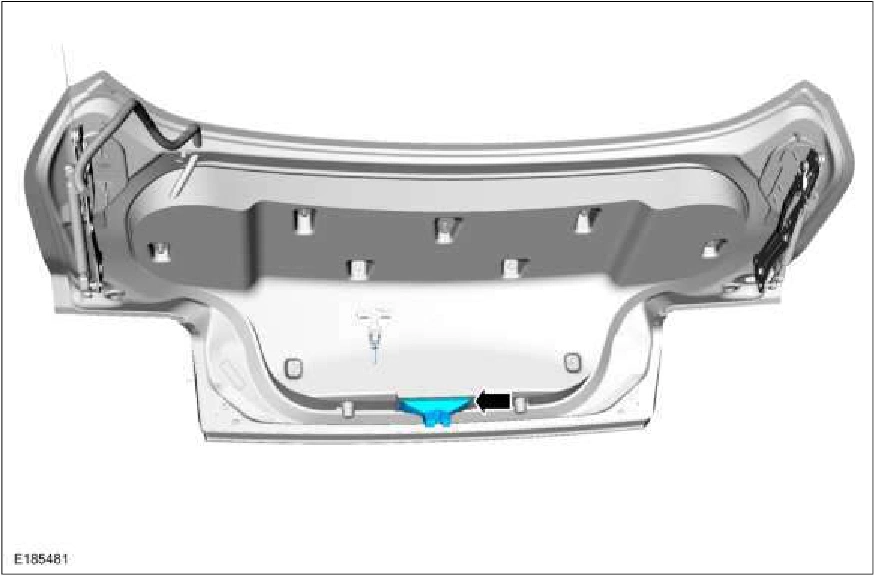

1. Remove the luggage compartment latch cover.

Rear Parking Aid Camera — original illustration 1, reference 4021Original colors & callouts · Select to enlarge

2. Remove the push pins and remove the luggage compartment lid interior trim panel.

Source reference 4021
