Generator - 5.0L 32V Ti-VCT
Base Part Number: 10300
Removal
NOTE: Removal steps in this procedure may contain installation details.
1. Disconnect the battery ground. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
2. Remove the air cleaner. Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).
3. Remove the accessory drive belt tensioner. Refer to: Accessory Drive Belt Tensioner (303-05C Accessory Drive - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

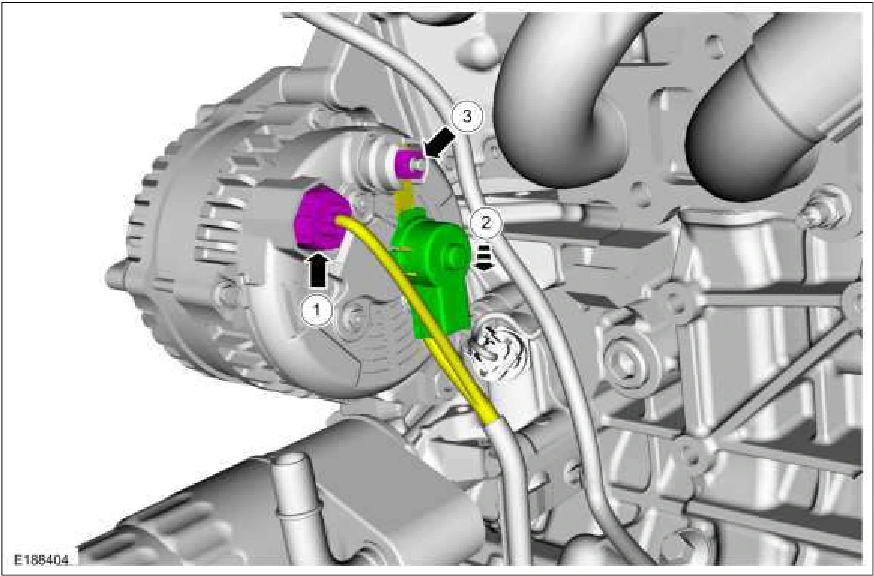

4. NOTICE: When installing the B+ terminal nut to the generator, finger-start the nut before tightening
or component damage may occur.
1. Disconnect the generator electrical connector.
2. Position the protective cover aside.
3. Remove the nut and position the generator B+ cable. Torque : 159 lb.in (18 Nm)
5. Remove the nut, bolt and the generator. Torque : 35 lb.ft (47 Nm)
