2016 workshop · Battery and Charging System

Generator Pulley

414-02 Generator and Regulator

2016 MustangReference 4,086 / 6,619HTML edition
← Chapter contentsProcedure contents

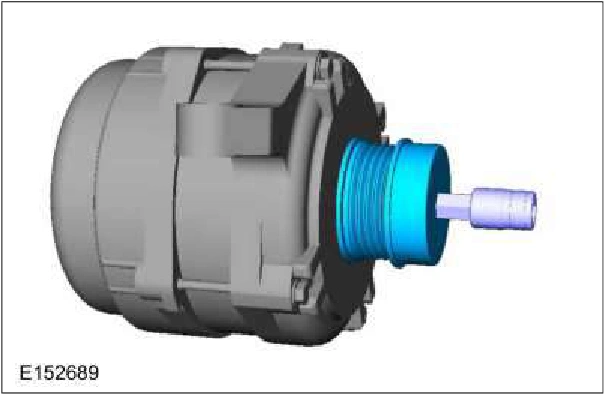

Generator Pulley — original illustration 1, reference 4086Original colors & callouts · Select to enlarge

Installation

1. Install the pulley and hand start.

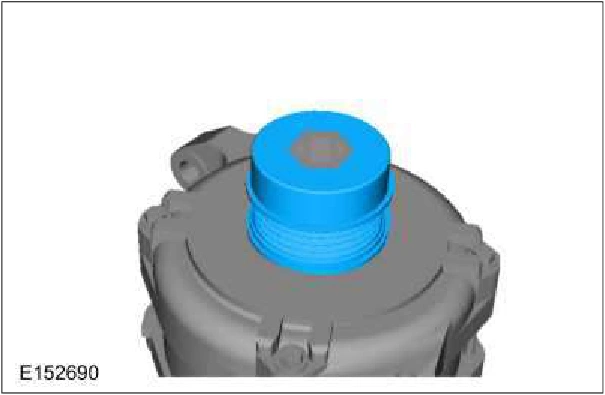

Generator Pulley — original illustration 2, reference 4086Original colors & callouts · Select to enlarge

2. NOTICE: Do not insert anything into the fins of the generator to prevent the rotor inside the

generator from turning. Inserting items into the generator could result in damage to the generator.

NOTE: The shaft and rotor will turn during installation.

While holding the outer diameter of the clutch pulley, torque the clutch pulley using a 17 mm hex tool, 75 Nm torque stick and an impact gun for 3-4 seconds. This makes sure the proper torque has been applied. Torque : 55 lb.ft (75 Nm)

Source reference 4086
