Generator Pulley — 2016 workshop reference 4087

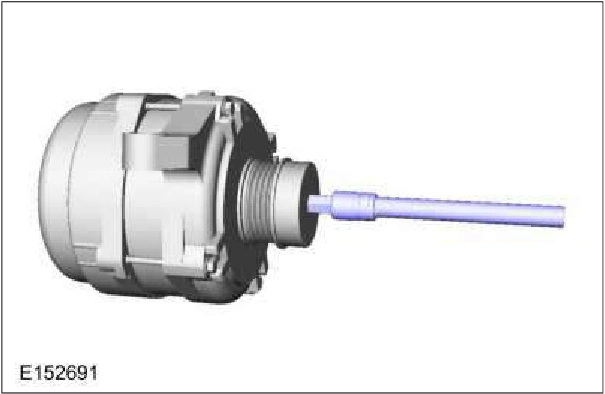

Generator Pulley — original illustration 1, reference 4087Original colors & callouts · Select to enlarge

3. Install a new cap onto the pulley with the rubber button facing inwards.

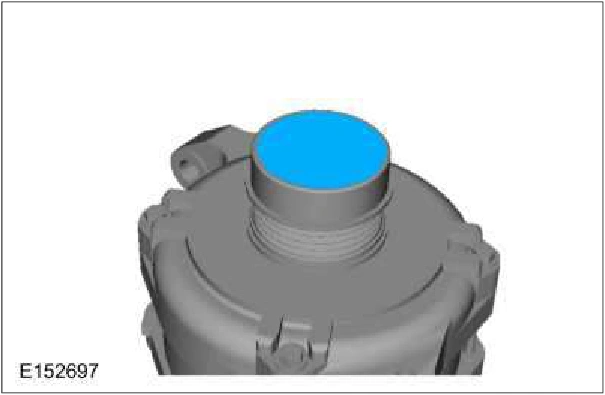

Generator Pulley — original illustration 2, reference 4087Original colors & callouts · Select to enlarge

4. Install the generator. Refer to: Generator - 2.3L EcoBoost (201kW/273PS) (414-02 Generator and Regulator, Removal and Installation). Refer to: Generator - 3.7L Duratec (227kW/301PS) (414-02 Generator and Regulator, Removal and Installation).
