415-00A Information and Entertainment System - General Information - 2016 Mustang Vehicles With: AM/FM/CD/SYNC

Procedure revision date:

Description and Operation

08/7/2015

Information and Entertainment System - Component Location

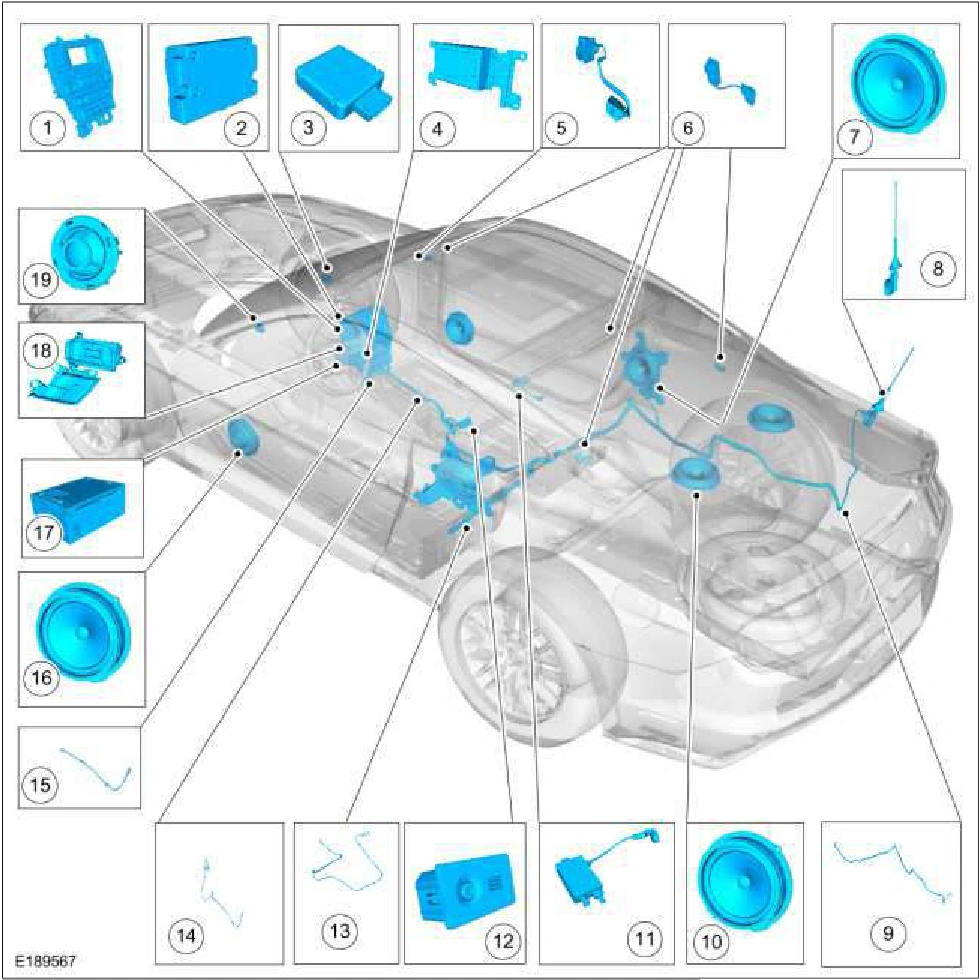

415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 1, reference 4088Original colors & callouts · Select to enlarge
Item	Description
1	FCIM
2	APIM (Located behind the FCDIM)
3	GPSM
4	4.2-inch (107 mm) FCDIM
5	SYNC® microphone (located in the overhead console)
6	ANC microphones - 2.3L only (coupe: located in the overhead console and center rear of the headliner) / (convertible: located in the overhead console, RHR quarter panel, and LHR quarter panel)
7	RHR quarter panel full-range speaker ( LHR also shown) (convertible)
