Control Diagram symbols - Description and Operation procedures

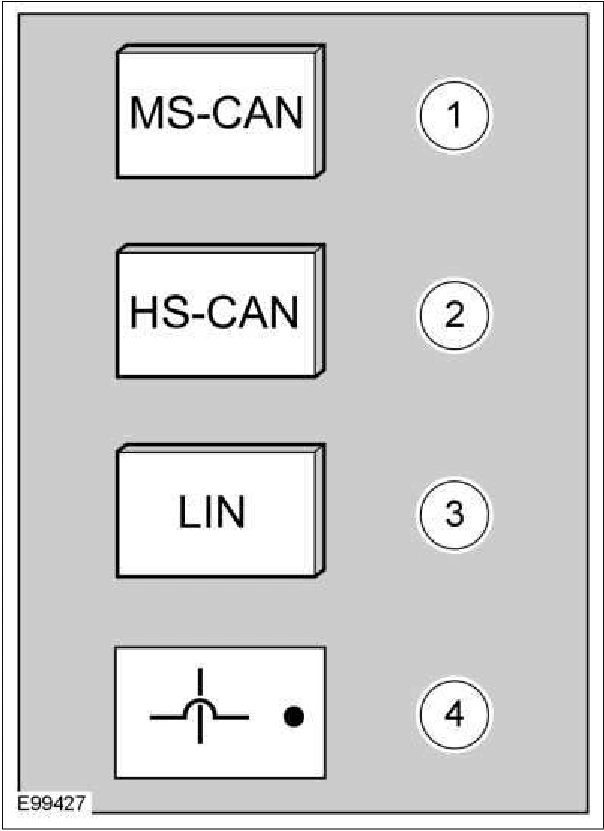

These symbols provide further information on the type of connectivity, direction of flow or type of data bus of a system.
Item | Part Number | Description |
|---|---|---|
1 | — | Mid-speed Controller Area Network (CAN) |
2 | — | High-speed Controller Area Network (CAN) |
3 | — | Local Interconnect Network (LIN) |
4 | — | Wires crossing not connected |
