Convertible

415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 1, reference 4257Original colors & callouts · Select to enlarge

5. Remove the rear seat backrest. Refer to: Rear Seat Backrest - Convertible (501-10B Rear Seats, Removal and Installation).

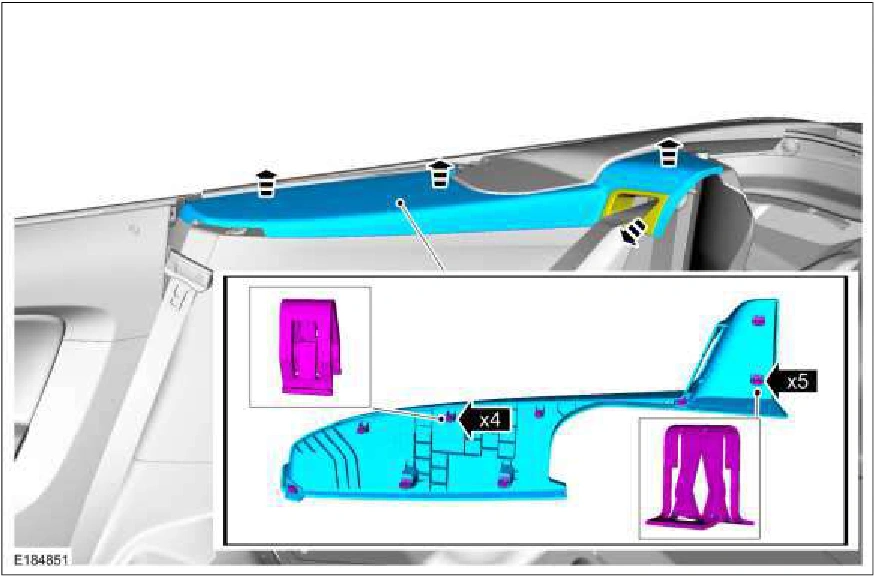

6. NOTE: RH side shown LH side similar.

Position the safety belt guide aside, release the clips and remove the upper loadspace trim panel.

Disconnect the electrical connector.

415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 2, reference 4257Original colors & callouts · Select to enlarge

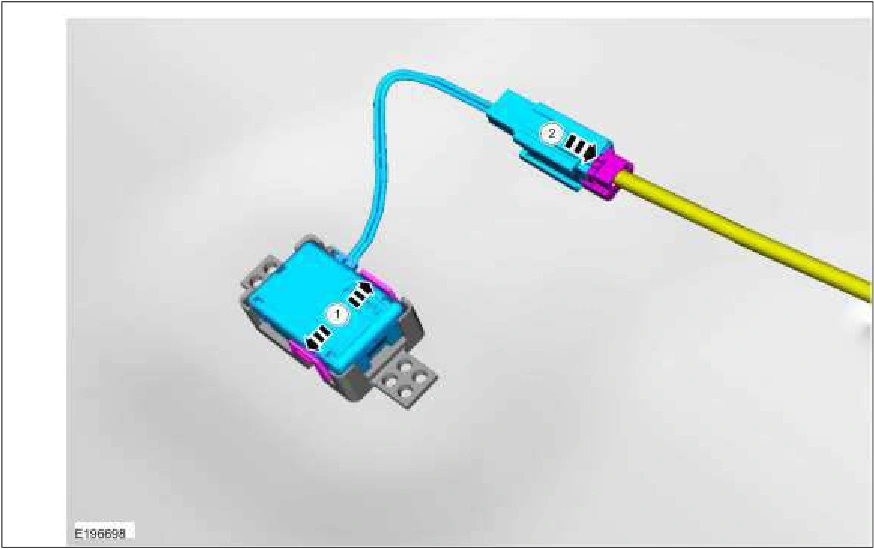

7. NOTE: RH side shown LH side similar.

1. Release the tabs.

2. Remove the ANC microphone

Source reference 4257
