Audio Input Jack

415-00A Information and Entertainment System - General Information - 2016 Mustang Vehicles With: AM/FM/CD/SYNC

Procedure revision date:

Removal and Installation

09/8/2014

Removal

1. Open the floor console lid.

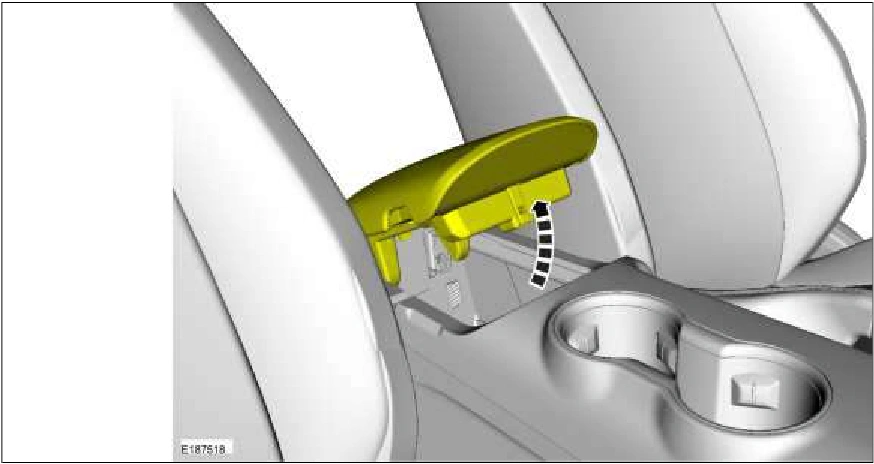

415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 1, reference 4260Original colors & callouts · Select to enlarge

2. Remove the audio input jack bezel. Disconnect the electrical connectors.

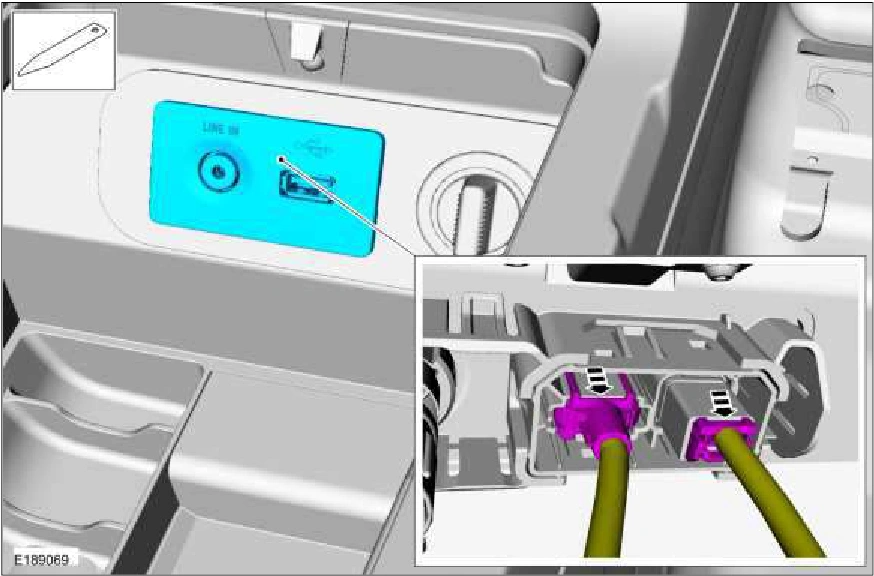

415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 2, reference 4260Original colors & callouts · Select to enlarge

Step 3

1. Release the tabs.

2. Remove the audio input jack.

Source reference 4260
