Audio Unit Antenna

415-00A Information and Entertainment System - General Information - 2016 Mustang Vehicles With: AM/FM/CD/SYNC

Procedure revision date:

Removal and Installation

07/29/2015

Removal

Coupe

1. NOTE: The audio unit antenna is part of the rear window glass.

Replace the rear window glass. Refer to: Fixed Glass (501-11 Glass, Frames and Mechanisms, General Procedures).

Convertible

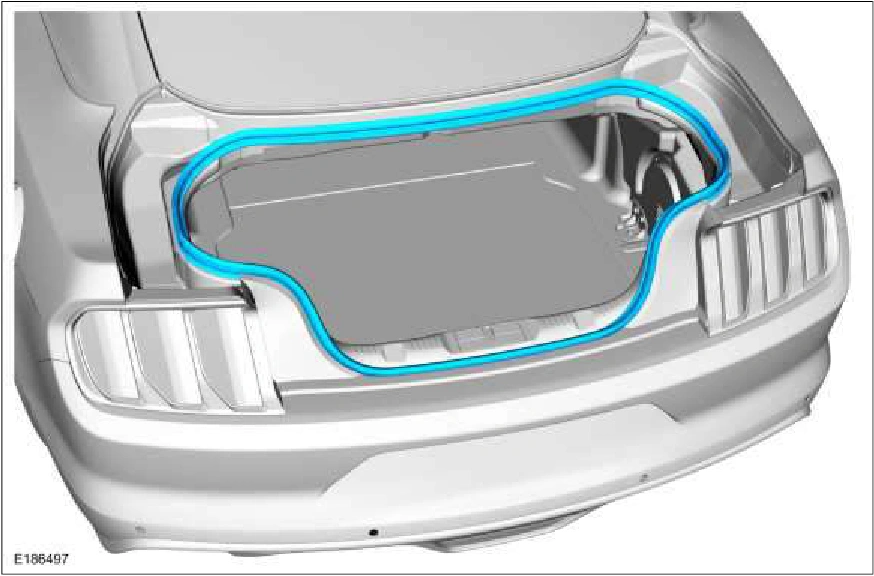

2. Remove the luggage compartment weatherstrip.

415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 1, reference 4262Original colors & callouts · Select to enlarge

3. Remove the spare tire cover.

Source reference 4262
