415-00A General Information -Vehicles With AM-FM-CD-SYNC — 2016 workshop reference 4264

415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 1, reference 4264Original colors & callouts · Select to enlarge

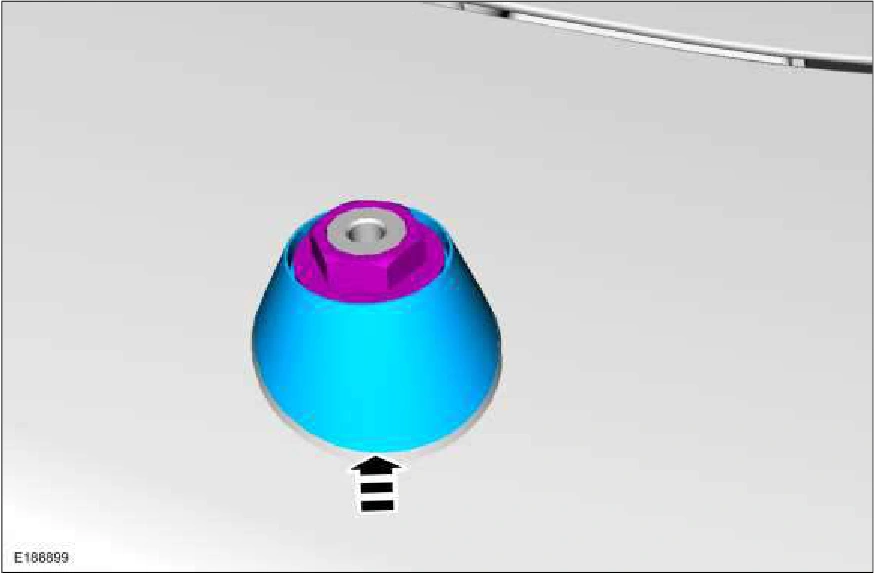

7. Remove the audio unit antenna mounting nut and the antenna base. Torque : 48 lb.in (5.4 Nm)

415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 2, reference 4264Original colors & callouts · Select to enlarge

Step 8

1. Press the tabs inward.

2. Remove the audio unit antenna.

3. Disconnect the electrical connector.

Source reference 4264
