Global Positioning System Module (GPSM)

415-00A Information and Entertainment System - General Information - 2016 Mustang Vehicles With: AM/FM/CD/SYNC

Procedure revision date:

Removal and Installation

07/29/2015

Removal

1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the GPSM following the on-screen instructions.

2. Remove the instrument panel center finish panel. Refer to: Instrument Panel Center Finish Panel (501-12 Instrument Panel and Console, Removal and Installation).

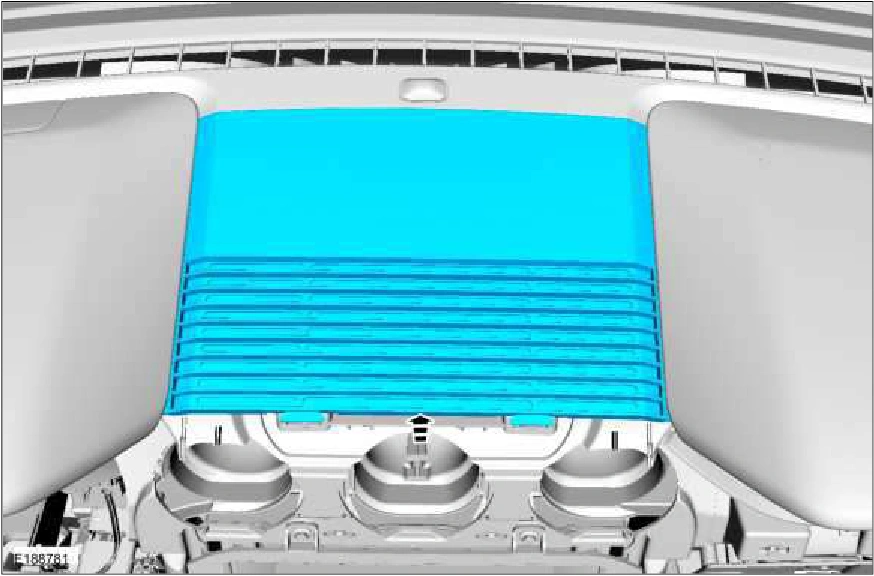

3. Remove the instrument panel speaker grille.

415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 1, reference 4283Original colors & callouts · Select to enlarge

4. Pull upwards to release the GPSM and remove. Disconnect the electrical connector.

Source reference 4283
