Instrument Panel Speaker

415-00A Information and Entertainment System - General Information - 2016 Mustang Vehicles With: AM/FM/CD/SYNC

Procedure revision date:

Removal and Installation

09/8/2014

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the instrument panel center finish panel. Refer to: Instrument Panel Center Finish Panel (501-12 Instrument Panel and Console, Removal and Installation).

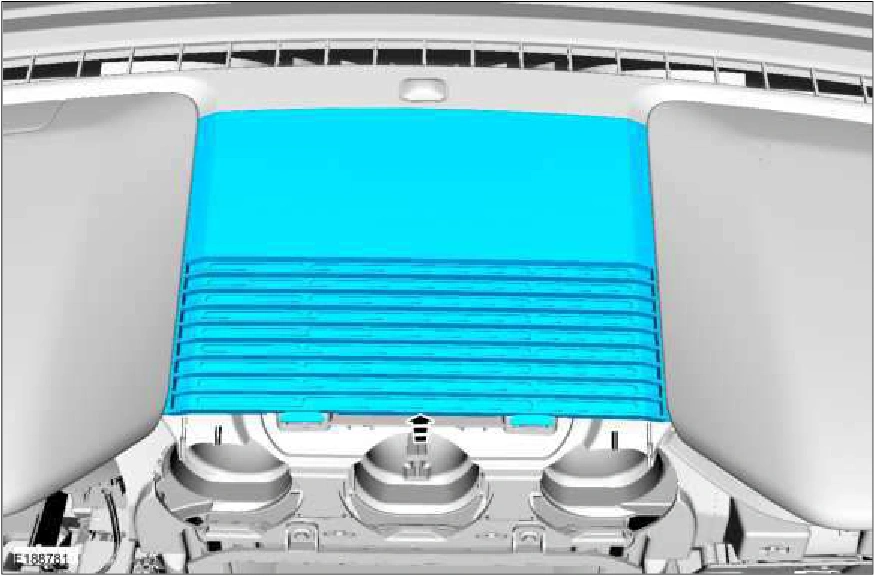

2. Remove the instrument panel speaker grille.

415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 1, reference 4285Original colors & callouts · Select to enlarge

3. Remove the bolts and the instrument panel speaker. Disconnect the electrical connector. Torque : 22 lb.in (2.5 Nm)

Source reference 4285
