Engine — 2016 workshop reference 433

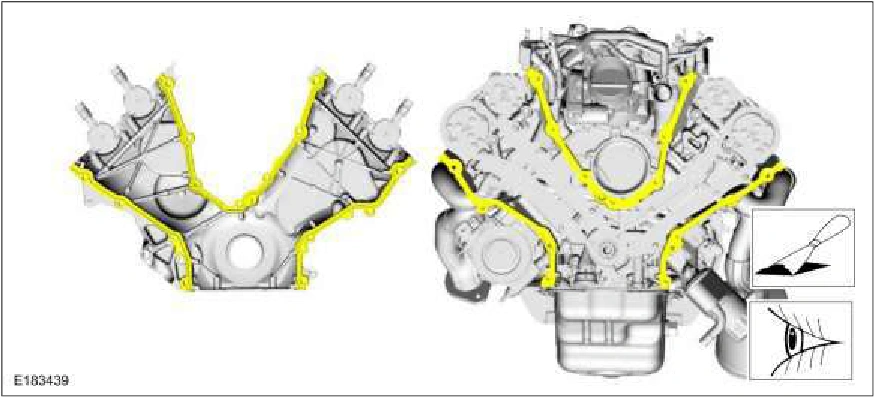

Engine — original illustration 1, reference 433Original colors & callouts · Select to enlarge

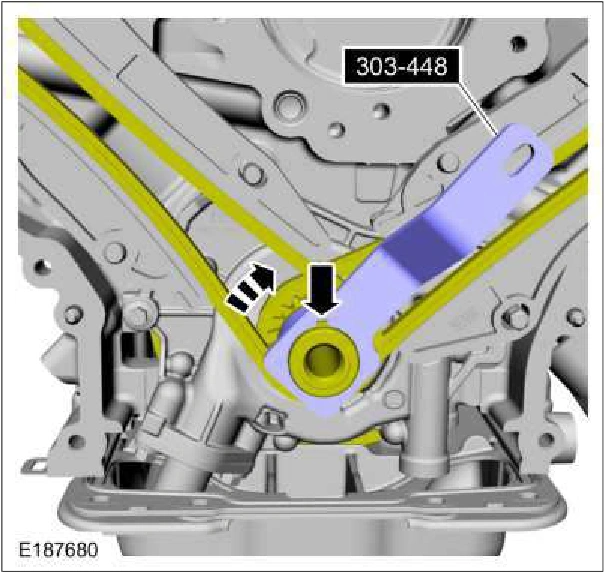

49. Using the special tool, rotate the crankshaft clockwise until the keyway is at the 12 o'clock position. Use Special Service Tool: 303-448 (T93P-6303-A) Holding Tool, Crankshaft.

Engine — original illustration 2, reference 433Original colors & callouts · Select to enlarge

50. Verify the timing mark on the RH VCT unit is on top, if not, rotate the crankshaft clockwise one complete revolution so the keyway is at the 12 o'clock position.
