Engine — 2016 workshop reference 436

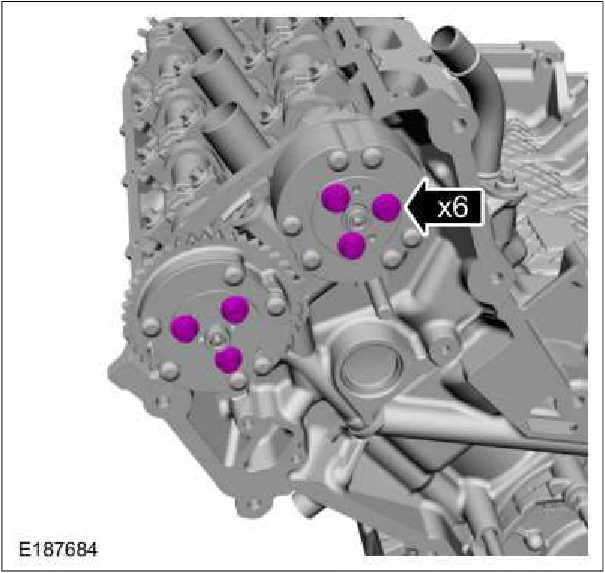

Engine — original illustration 1, reference 436Original colors & callouts · Select to enlarge

55. Remove the intake and exhaust VCT assembly bolts.

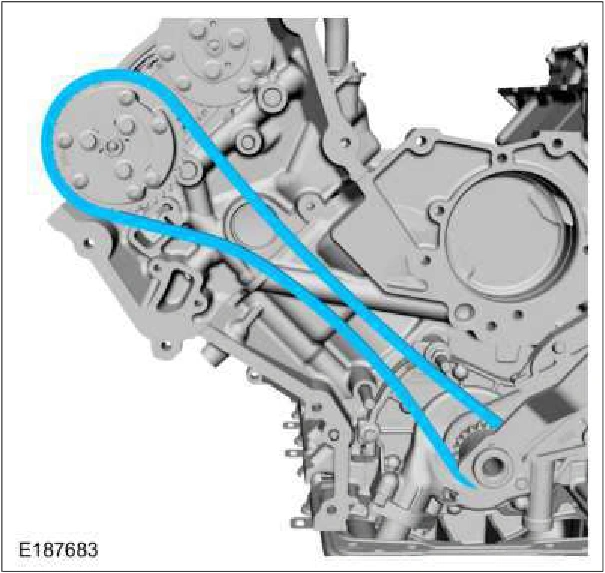

Engine — original illustration 2, reference 436Original colors & callouts · Select to enlarge

56. Slide the VCT assemblies and secondary timing chain forward 2 mm (0.078 in).
