2016 workshop · Engine

Engine

303-01C Engine - 5.0L

2016 Mustang5.0LReference 438 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine — original illustration 1, reference 438Original colors & callouts · Select to enlarge

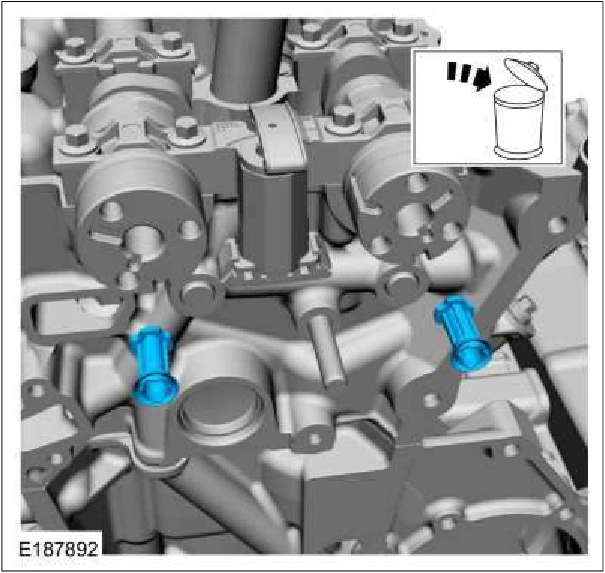

59. Remove and discard the VCT system oil filters.

Engine — original illustration 2, reference 438Original colors & callouts · Select to enlarge

60. NOTICE: The front camshaft bearing mega cap must be removed first and then the remaining

camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

Remove the bolts and the front camshaft bearing mega cap.
