Engine — 2016 workshop reference 440

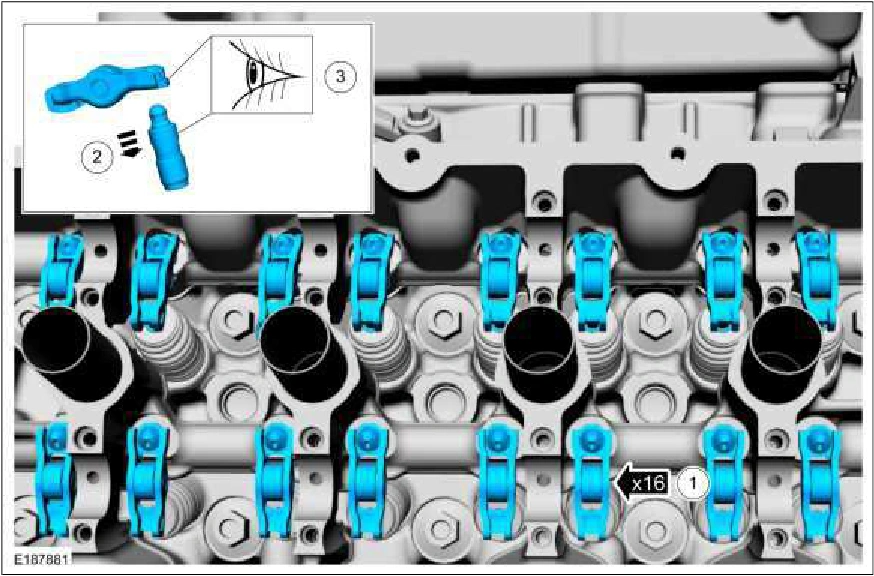

Engine — original illustration 1, reference 440Original colors & callouts · Select to enlarge

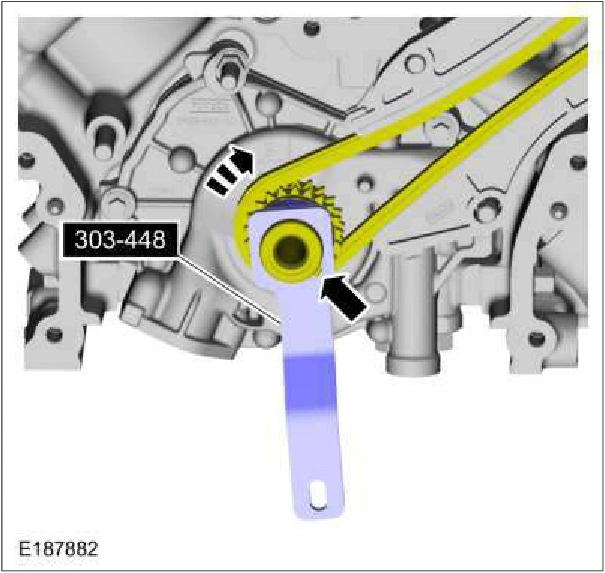

64. Using the special tool, rotate the crankshaft clockwise until the keyway is at the 5 o'clock position. Use Special Service Tool: 303-448 (T93P-6303-A) Holding Tool, Crankshaft.

Engine — original illustration 2, reference 440Original colors & callouts · Select to enlarge

65. Remove the bolts and the LH primary timing chain tensioner.

Source reference 440
